Designed primarily for industrial and commercial users, this three phase digital ups is engineered to provide continuous, uninterruptible power to sensitive electrical systems. Targeted at industries requiring dependable energy like data centers, telecommunications, and manufacturing facilities, this product offers enhanced security against power disturbances. As a specialized offering from an digital ups manufacturer, it supports scalable configurations for increased resilience, making it a preferred solution among professional users seeking reliable power continuity. Its versatility accommodates integration into large-scale power management schemes, ensuring operational integrity under diverse load demands.
Equipped with industrial frequency ups components, the system features a robust isolation transformer delivering full electrical separation between input and output circuits. Utilizing a DSP digital control system, it provides precise voltage regulation, fast response times, and comprehensive protection mechanisms against abnormalities such as overloads and short circuits. The product supports N+1 parallel architecture, enabling modular capacity expansion and redundancy without interrupting operational continuity. Its operating efficiency reaches up to 98% in ECO mode, optimizing electrical performance while reducing operational costs. Real-time system diagnostics and seamless transfer courtesy of dual static switches enhance system reliability.
This data center ups system plays a vital role in sectors requiring stringent power quality and availability. It safeguards communication nodes, server farms, and sophisticated medical devices against outages and voltage fluctuations. Industrial settings benefit from its capability to handle unbalanced loads with three-phase modulation, ensuring steady power for automation lines and processing equipment. Its compliance with international quality standards and adaptability to harsh environments make it suitable for military communications, transportation signal systems, and energy extraction operations, where power stability directly affects mission-critical functions.
The modular design of this three phase digital ups promotes scalability and ease of maintenance, characteristic of leading industrial ups suppliers. Featuring a dual static switch system, it assures zero transfer time during power mode switching, essential for sensitive equipment continuity. The inclusion of an industrial frequency ups isolation transformer establishes robust electrical isolation, enhancing electromagnetic compatibility and reducing noise interference. Its parallel operation capability—supporting configurations from single units to N+1 redundancy—allows integrators to tailor solutions for specific reliability and capacity requirements in complex power distribution networks.
Engineered for optimal efficiency, this three phase digital ups operates with an ECO economic mode that significantly reduces energy consumption while maintaining power quality. The control system permits full three-phase independent modulation, ensuring stable power delivery even under severe load imbalances. Interface accessibility and integrated protection features reduce the need for manual intervention, enhancing lifecycle value and minimizing downtime. The system’s compliance with international standards ensures predictable performance in various environments, thereby delivering dependable, high-quality power suitable for demanding industrial and data center applications.

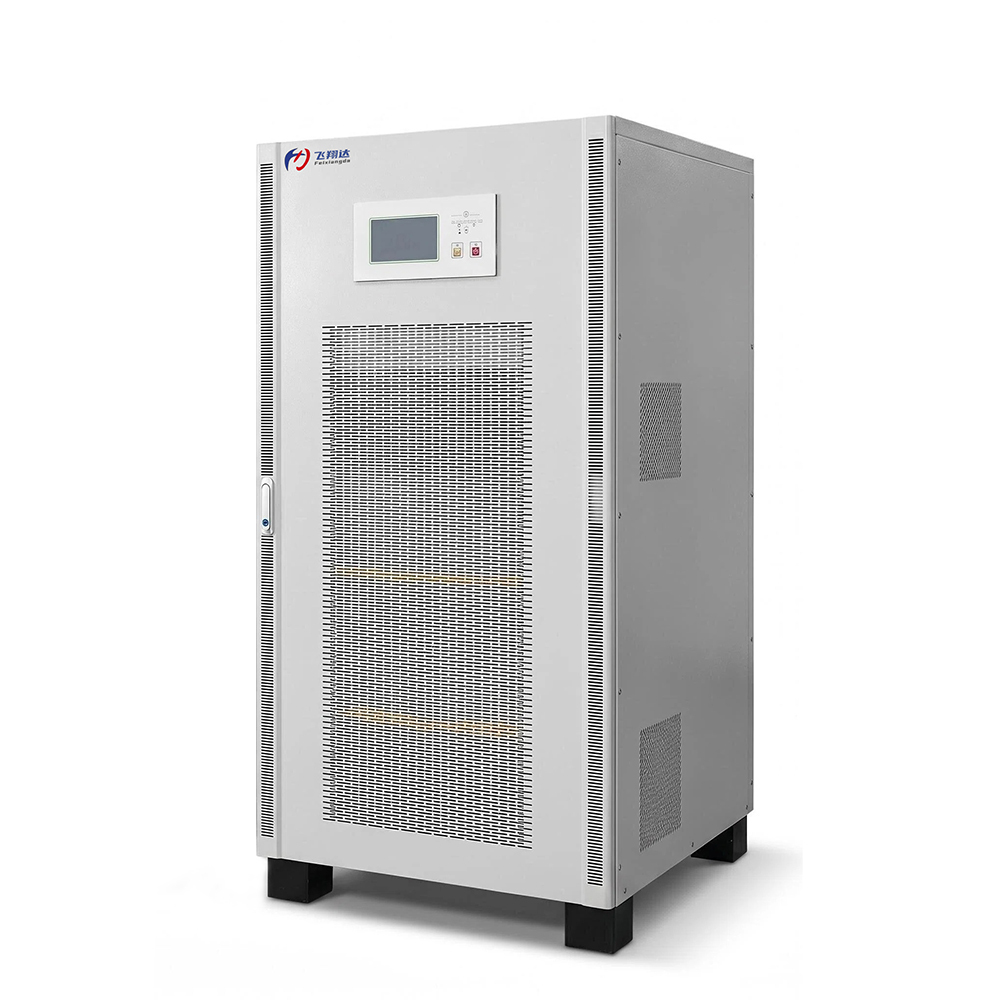

Feixiangda's three-phase industrial frequency on-line UPS adopts advanced DSP digital control technology, combined with high-speed 16-bit digital chip and ASIC DDC control technology, together with advanced IGBT and SCR power devices, to design a large capacity, high reliability, excellent performance intelligent UPS. The product uses an industrial frequency isolation transformer, providing complete electrical isolation between output and input, strong anti-interference ability, and extremely low zero-ground voltage. Supports single unit operation, 1+1 parallel operation and N+1 multi-unit parallel redundant operation.
Widely used in data centers, network computer rooms, finance, telecommunications, insurance, transportation, taxation, military, energy, education, government, manufacturing, commercial and other industries, providing the highest level of power protection for large electromechanical equipment, servers, communication equipment, precision instruments, etc.

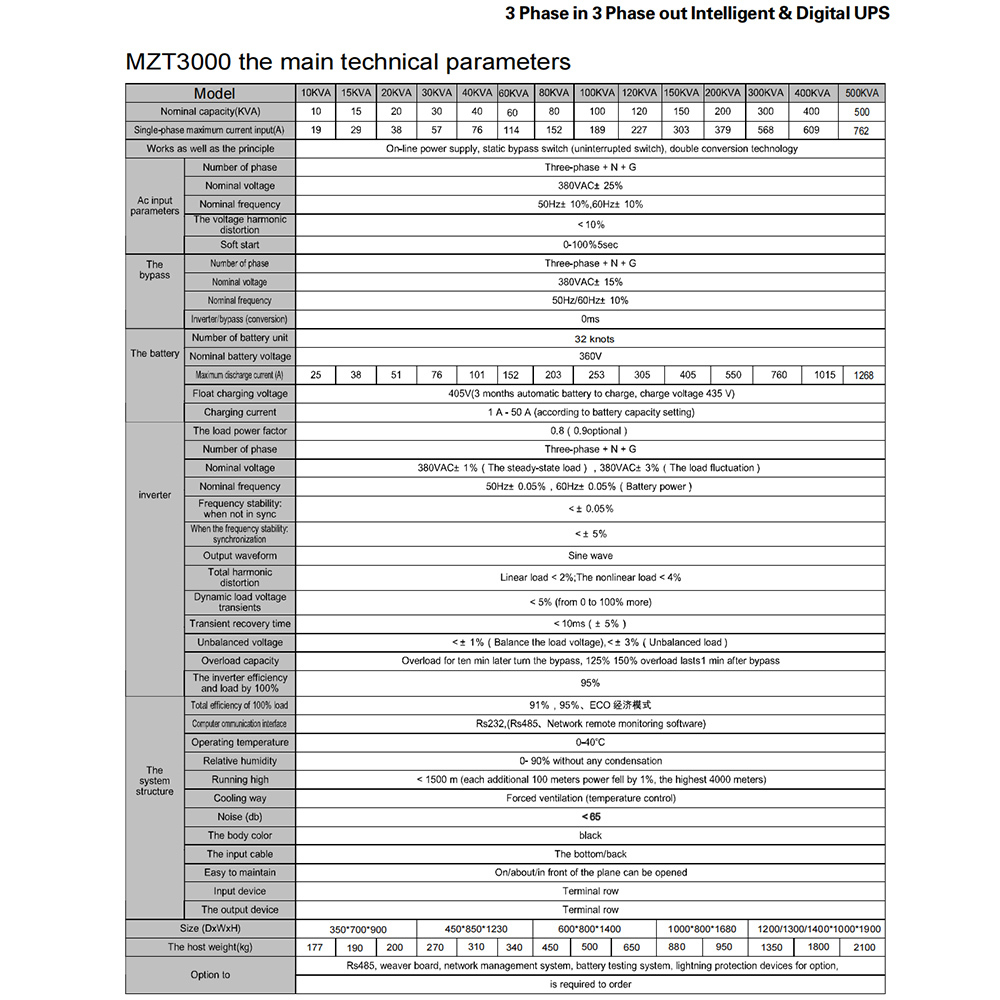

Power Range: 10KVA ~ 400KVA (up to 500KVA)
Operation Mode: Three Phase Input Three Phase Output, Double Conversion On-line, Industrial Frequency Isolation Transformer
Installation: Tower
Load Power Factor: 0.8 (0.9 optional)
Total System Efficiency: 91%, 95% (ECO Mode)

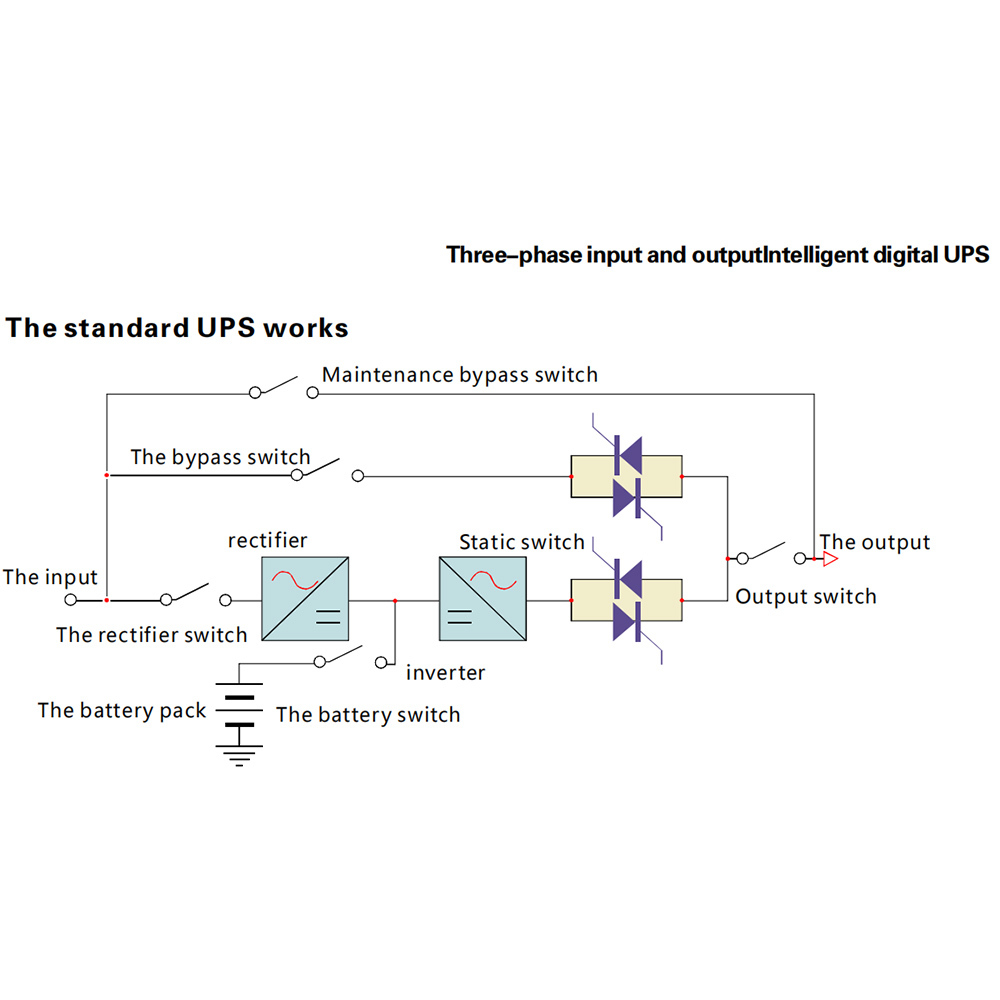

The three-phase industrial frequency on-line UPS works based on the double conversion on-line principle, with an industrial frequency isolation transformer:
In modern data centers, continuous and clean power is paramount to prevent data loss and ensure uptime. This data center ups system integrates seamlessly with server infrastructure to provide reliable backup power, minimizing downtime caused by power interruptions. Its industrial frequency ups design delivers resilient electrical isolation and noise suppression, which are critical for safeguarding sensitive IT equipment. The UPS supports parallel operation to meet varying load requirements and backup durations, enabling data center operators to optimize power management strategies while complying with stringent uptime criteria.
Within industrial environments, this three phase digital ups serves as a foundational element for uninterrupted power delivery to heavy machinery and automation equipment. Its robust industrial frequency ups architecture enables it to withstand harsh operational conditions while supplying stable current to production lines. By maintaining consistent voltage and rapid transfer switching through dual static switches, the UPS ensures continuous operation and protects sensitive control systems from faults. Integration into factory power distribution networks reinforces production efficiency and safety protocols, aligning with the demands of modern industrial operations.
The DSP digital processor monitors input voltage, output voltage, load, battery status and other parameters in real-time, achieving precise control and fast response.
| Feature | Description |
|---|---|
| Industrial Frequency Isolation Transformer Design | Standard output isolation transformer, strong anti-interference ability, extremely low zero-ground voltage, meeting the power requirements of precision instruments. Good load compatibility, adaptable to various loads. |
| DSP Full Digital Control Technology | Uses advanced DSP digital signal processor, combined with high-speed 16-bit digital chip, high control precision, fast response, extremely high system stability. |
| Dual Static Switch Design |
12 SCRs form dual non-contact static switches on the inverter side and bypass side, ensuring uninterrupted switching between inverter power supply and bypass power supply. Switching time 0ms when synchronized, less than 4ms when out of sync.
|
|
Flexible Parallel Technology
|
Suitable for different loads and systems, can operate as single unit, 1+1 parallel, or multi-unit (N+1) parallel for redundant backup.
|
|
ECO Economic Operation Mode
|
ECO economic operation mode, efficiency up to 98%, significantly reducing operating costs.
|
|
100% Unbalanced Load Capability
|
Three-phase independent modulation, full bridge inverter technology, can operate normally and reliably under 100% unbalanced three-phase load.
|
|
Multiple System Protection
|
Features overvoltage, undervoltage, overcurrent, overload, short circuit and other abnormal condition detection and alarm functions, strong environmental adaptability.
|
|
Audible and Visual Alarm
|
Green light: UPS normal operation; Yellow light: Battery mode; Red light: Maintenance alarm.
|
|
Multiple Outputs
|
10~80kVA with 4 types of outputs, can integrate multiple devices without external distribution box.
|
|
Multiple Voltage Outputs
|
Compatible with various input and output voltage specifications, output uses copper wire wound isolation transformer, low loss, low heat.
|
|
Optional 12 Pulse Rectifier
|
Optional 12 pulse rectifier input, improves input power factor, suppresses harmonic pollution, meets higher grid quality requirements.
|
| Application | Description |
|---|---|
| Data Center | Provides uninterrupted power protection for large data center servers, storage devices, and network equipment. |
| Network Computer Room | Protects enterprise core network equipment, switches, routers and other critical IT equipment. |
| Financial System | Protects computer systems and trading equipment of banks, securities, insurance and other financial institutions. |
| Telecommunication Base Station | Provides stable and reliable power guarantee for telecommunication base station and switching center equipment. |
| Medical Equipment | Provides uninterrupted power for large medical instruments, CT, MRI, monitoring equipment. |
| Industrial Manufacturing | Protects production lines, PLC control systems, automation equipment, CNC machine tools. |
| Rail Transit | Provides power protection for railway signal systems, subway equipment, tunnel lighting. |
| Oil Field & Mine | Protects oil field drilling equipment, mining machinery, monitoring systems. |
| Military & Defense | Provides high reliability power for military communications, radar, command systems. |
| Research Laboratory | Provides clean and stable power for precision instruments and experimental equipment. |
| Item | Detail |
|---|---|
| Quality System | ISO9001 Quality Management System Certification |
| Product Certification | CE Certified (Compliant with relevant standards) |
| Testing Process | 100% full inspection + 48-hour full-load aging test |
| Warranty | 12 months standard warranty, extendable to 36 months |
| After-sales Service | Lifetime technical support, 7×24 rapid response |
|
Advantage
|
Description
|
|---|---|
|
Source Factory
|
Nearly 20 years of power equipment manufacturing experience, own production lines, cost-controlled, guaranteed delivery.
|
|
Quality Assurance
|
100% inspection + 48-hour aging test, ISO9001 certified, product yield rate over 99.7%.
|
|
Flexible Customization
|
Supports non-standard customization for capacity, voltage, communication interface, 12 pulse rectifier, etc., meeting special requirements.
|
|
Global Service
|
7×24 technical support, 12-month warranty (extendable), lifetime maintenance.
|
|
Professional Team
|
Experienced R&D engineers and foreign trade team, providing selection guidance and technical consultation.
|
|
Technical Accumulation
|
Nearly 20 years of industrial frequency UPS manufacturing technical accumulation, mature and reliable products, compliant with international standards.
|
FAQ
Q1: What is the difference between industrial frequency on-line UPS and high frequency on-line UPS?
A: Industrial frequency UPS uses an industrial frequency isolation transformer, providing complete electrical isolation between output and input, strong anti-interference ability, extremely low zero-ground voltage, good load compatibility, suitable for various loads. High frequency UPS uses high frequency switching technology, small size, light weight, high efficiency, but relatively weaker anti-interference ability and load compatibility. Industrial frequency UPS is more suitable for industrial environments, large capacity and important load scenarios.
Q2: Does this UPS support parallel operation?
A: Yes. This UPS supports single unit operation, 1+1 parallel operation and N+1 multi-unit parallel redundant operation, achieving capacity expansion and redundant backup.
Q3: What is ECO economic mode?
A: ECO economic mode is when the mains quality is good, the UPS automatically switches to bypass power supply, powered directly by the mains, with efficiency up to 98%, significantly reducing operating costs. When the mains is abnormal, it automatically switches back to inverter power supply to ensure load safety.
Q4: What is 12 pulse rectifier? What are the benefits?
A: 12 pulse rectifier is an input rectification technology that uses a phase-shifting transformer and two sets of 6 pulse rectifiers to reduce input current harmonics from about 30% to about 10%, improve input power factor, reduce harmonic pollution to the grid, and meet stricter grid quality requirements.
Q5: What is the overload capacity of this UPS?
A: 125% overload for 10 minutes then transfer to bypass, 150% overload for 1 minute then transfer to bypass, >150% overload for 200ms then transfer to bypass, with strong overload capacity.
Q6: Can this UPS be configured with external battery packs?
A: Yes. This UPS standard configuration is external battery packs, which can be configured with different capacity batteries according to customer requirements to achieve different backup times.
Q7: What customization options are available for the Three Phase Industrial Frequency On-line UPS?
A: We offer customized solutions for the industrial frequency ups to meet specific power requirements, including capacity adjustments up to 500KVA, communication interfaces, voltage specifications, and optional 12-pulse rectifiers to enhance power quality in your system.
Q8: How do you ensure the reliability and quality of your three phase digital UPS products?
A: Our three phase digital UPS undergoes 100% full inspection and a 48-hour full-load aging test. We strictly follow ISO9001 quality management and CE certification standards to guarantee product stability and high performance in critical industrial environments.
Q9: Can your UPS systems be installed in parallel for increased capacity and redundancy?
A: Yes, our industrial frequency ups supports single units, 1+1 parallel and N+1 multi-unit parallel configurations. This flexibility allows you to expand capacity or enable redundant backup to ensure uninterrupted power for your critical infrastructure.
Q10: What support do you provide for installation and maintenance of the UPS systems?
A: We provide comprehensive technical guidance throughout the installation of your data center ups system. Our team is available to assist with setup, operation, and ongoing maintenance to maximize your system’s uptime and efficiency.
