The sbw compensated voltage regulator is engineered primarily for industrial clients requiring robust voltage management solutions. As a three phase voltage stabilizer, it targets facilities with critical power needs, including manufacturing plants and large-scale commercial operations. Our sbw voltage stabilizer manufacturer optimizes the device for high power systems that demand accuracy and durability. This product supports load ranges suited for heavy machinery and sensitive electrical equipment, providing a controlled voltage environment essential for operational efficiency and minimizing downtime risks.
Featuring three phase voltage stabilizer technology, the product consistently delivers an output voltage within ±2% of the nominal AC 380V, with efficiency exceeding 98%. The high power voltage regulator uses compensated voltage regulation technology to respond dynamically within 2 seconds to voltage fluctuations up to 10V. With modular design and dry air cooling, the device allows continuous operation up to 20 years under full load conditions. Multiple protection mechanisms guard against overvoltage, undervoltage, short circuits, and overloads. The sbw compensated voltage regulator complies with IEC standards and maintains low noise emission, ensuring integration compatibility and adherence to industrial safety requirements.
This three phase voltage stabilizer addresses stable power supply challenges in various sectors such as metal processing, textile machinery, medical imaging equipment, and building automation. As a high power voltage regulator, it safeguards critical industrial processes by maintaining constant voltage amid grid fluctuations, thereby reducing equipment failure and maintenance costs. The product’s adaptability extends to elevator systems, broadcasting equipment, and railway signal networks, where voltage stability is paramount for system reliability. Our organization, a reputable industrial voltage stabilizer supplier, supports end-users seeking enhanced operational continuity and regulatory compliance.
The sbw compensated voltage regulator embodies a structurally sound design aligned with industrial voltage stabilizer supplier standards, ensuring high mechanical robustness and thermal reliability. Its three phase voltage stabilizer architecture incorporates independent phase regulation for rapid corrective responses. The device’s modular construction facilitates straightforward installation and maintenance, while dry air cooling enhances thermal management without requiring complex cooling systems. Integration of multi-layer protection systems ensures system resilience against electrical faults, enhancing both the longevity and safety of the high power voltage regulator in demanding industrial contexts.
Engineered for continuous long-term use, this sbw compensated voltage regulator optimizes power efficiency with greater than 98% efficiency rates to reduce operational energy costs. Users benefit from adjustable voltage stabilization accuracy, automatic/manual switching modes, and low noise generation promoting a quieter working environment. The product’s rapid 2-second response time minimizes voltage disruption impacts on connected equipment. Moreover, its 20-year design life with stable output guarantees a favorable ROI by lowering maintenance needs and preventing unexpected downtime, aligning with the objectives of system engineers and procurement managers focused on sustainable industrial power solutions.

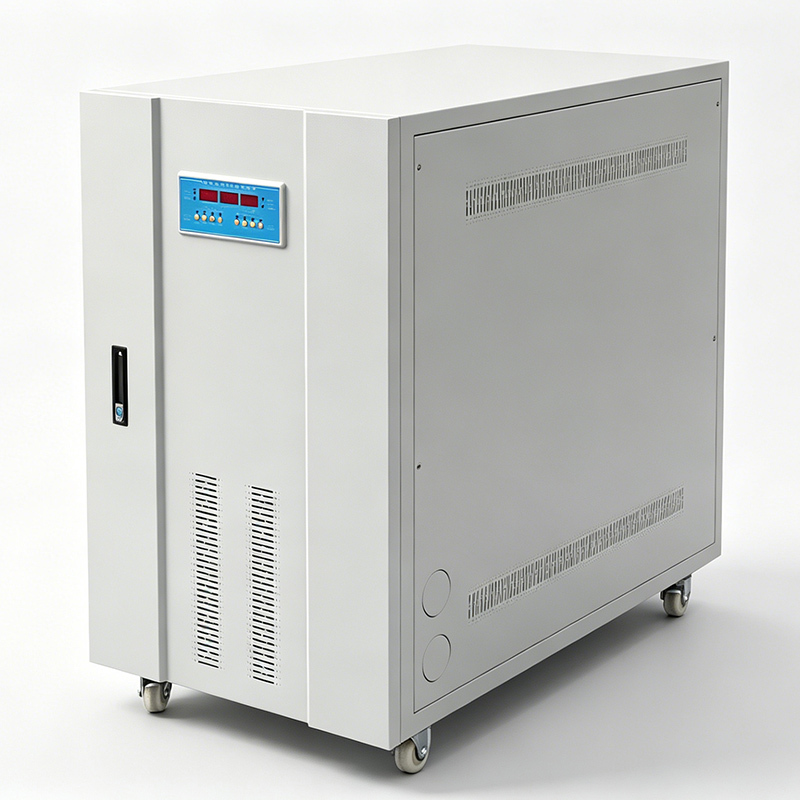

Feixiangda SBW series three-phase high-power compensated voltage stabilizer adopts international advanced Western European technology, combined with China's national conditions, designed as a high-performance power equipment to stabilize AC voltage. When voltage fluctuations occur due to external power supply network fluctuations or load changes, it can automatically maintain output voltage stability.
Compared with other types of voltage stabilizers, this product features large capacity, high efficiency, no waveform distortion, stable voltage regulation. It has wide load applicability, long-term continuous operation, automatic/manual switching, and easy use. Products are widely used in large mechanical and electrical equipment, metal processing equipment, production lines, elevators, medical equipment, embroidery textile equipment, air conditioners, radio and television, household appliances and building lighting in the fields of industry, transportation, post and telecommunications, national defense, railways, scientific research, etc.
Power Range: 60-120KVA
Number of Phases: Three-Phase
Input Voltage: AC 380V ± 15%
Output Voltage: AC 380V ± 2%
Voltage Stabilizing Accuracy: ± 1% - 5% (Adjustable)
Voltage Regulation Mode: Three-Phase Compensation Independent Regulation
Efficiency: ≥98%
Design Life: 20 Years
Metal processing plants require precise voltage regulation to maintain equipment integrity and product quality. The sbw compensated voltage regulator, as a three phase voltage stabilizer, plays a critical role in stabilizing input voltages that fluctuate due to heavy load variations from welding machines, furnaces, and CNC tools. Its capacity as a high power voltage regulator allows consistent power supply in environments characterized by frequent voltage swings. The device’s robust protection functions and compliance with industrial durability standards facilitate seamless integration with production control systems and ensure compliance with operational safety protocols.
In medical imaging and diagnostic facilities, stable and clean power is vital to ensure accurate device performance and patient safety. By deploying this sbw compensated voltage regulator, medical centers benefit from a three phase voltage stabilizer that eliminates waveform distortion and maintains tight voltage regulation thresholds. As a product from a trusted sbw voltage stabilizer manufacturer, the voltage regulator’s advanced compensation technology protects sensitive imaging equipment from abrupt electrical fluctuations and ensures compliance with health industry electrical standards. Its operational reliability supports continuous 24/7 usage, interfacing effectively with hospital power management systems to uphold uninterrupted diagnostic operations.

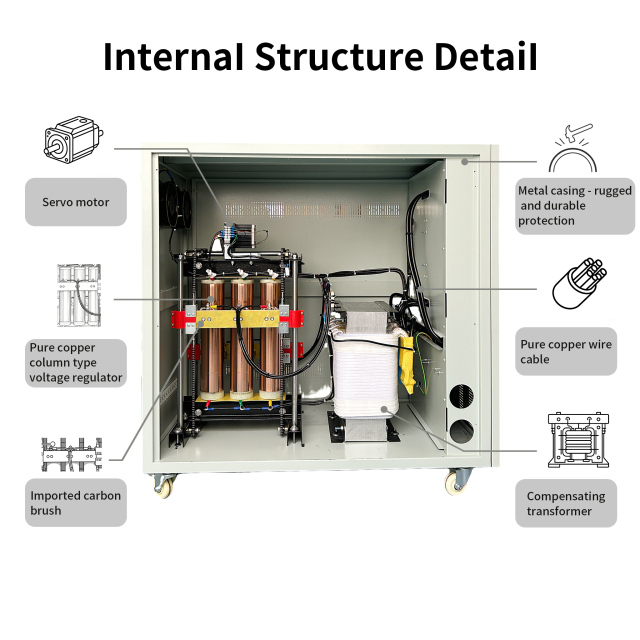

The SBW high-power compensated voltage stabilizer works based on the three-phase compensation independent regulation principle:
| Feature | Description |
|---|---|
| Large Capacity | Rated capacity 60-120KVA, meeting medium and large load requirements, suitable for various industrial equipment. |
| High Efficiency | ≥98%, low energy conversion loss, energy saving and environmentally friendly, reducing operating costs. |
| No Waveform Distortion | Output waveform has no additional distortion, ensuring pure power quality, no harmonic pollution to load equipment. |
| Stable Voltage Regulation | Three-phase compensation independent regulation, smooth regulation without impact, ensuring stable equipment operation. |
| Wide Applicability to Loads | Suitable for various types of loads, including resistive, inductive, and capacitive loads. |
| Long-term Continuous Operation | Design life of 20 years, can operate continuously for a long time, stable and reliable performance. |
| Auto/Manual Switch | Automatic and manual switching at will, flexible and convenient use, adapting to different operational needs. |
| Multiple Protection Functions | Automatic voltage stabilization, manual voltage regulation, under phase indication, over/under voltage alarm, short circuit protection, overload protection. |
| Dry Air Cooling | Adopts dry air cooling method, simple maintenance, quiet operation. |
| Protection Grade IP20 | Suitable for indoor general environment, safe and reliable. |
| Fast Reaction Time | When the input voltage jump is within 10V, the reaction time is 2s, quickly responding to voltage changes. |

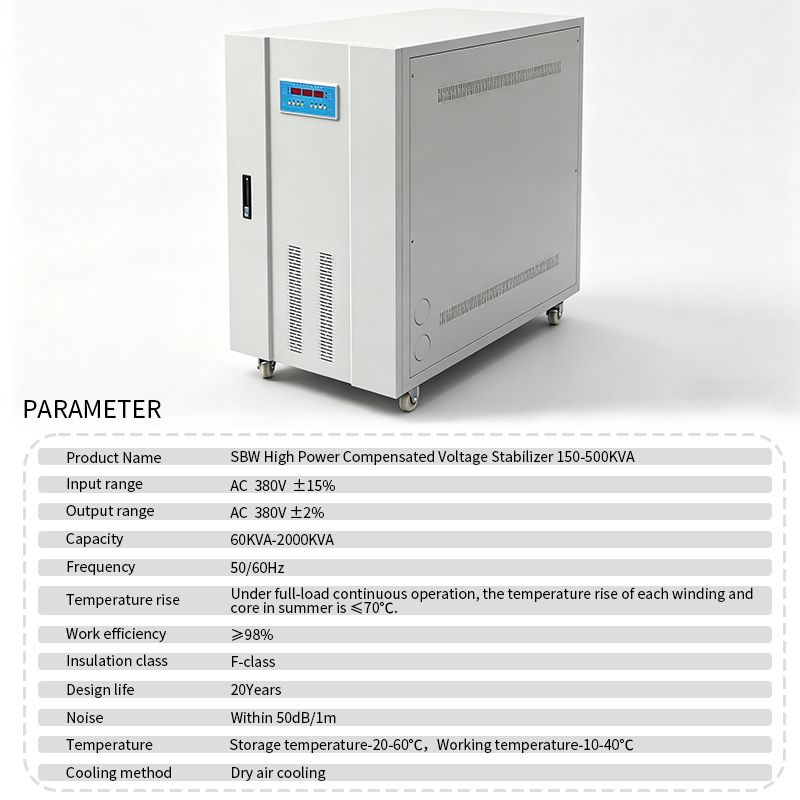

| Item | Parameter |
|---|---|
| Product name | SBW High-Power Compensated Voltage Stabilizer |
| Frequency | 50/60Hz |
| Input voltage | AC 380V ± 15% |
| Output voltage | AC 380V ± 2% |
| Voltage stabilizing accuracy | ± 1% - 5% Adjustable |
| Reaction time | When the input voltage jump is within 10V, the reaction time is 2s |
| Voltage regulation mode | Three phase compensation independent regulation |
| Protection function | Automatic voltage stabilization, manual voltage regulation, under phase indication, over/under voltage alarm, short circuit protection, overload protection |
| Insulation grade | Class F |
| Load test | EN - 61558 - 2 - 4 / EC - 204 |
| Voltage rise test | There is no abnormality in AC 2500V/min between coil and iron core |
| Temperature rise | Under full load continuous operation, the temperature of each winding and core in summer is ≤ 60℃ |
| Insulation resistance | ≥5MΩ |
| Work efficiency | ≥98% |
| Overload capacity | The system runs with 100% excess load for one minute |
| Noise | Within 50dB/1m |
| Temperature | Storage temperature -20 - 60℃, Working temperature -10 - 40℃ |
| Humidity | 30 - 90% no condensation |
| Degree of protection | IP20 |
| Cooling mode | Dry air cooling |
| Executive standard | JB/8749.8-2014 |
| Design life | 20Years |
| Application | Description |
|---|---|
| Industrial Field | Provides stable power for large electromechanical equipment, metal processing equipment, production lines. |
| Transportation Field | Provides stable power for traffic signal systems, tunnel lighting, railway equipment. |
| Post and Telecommunications | Provides reliable power guarantee for communication base stations, postal equipment. |
| National Defense | Provides stable power for military equipment, radar systems, communication systems. |
| Railway System | Provides voltage stabilization support for railway signal systems, traction power supply systems. |
| Research Institutions | Provides stable power for precision equipment in research laboratories. |
| Medical Equipment | Provides stable power for large medical equipment, CT machines, MRI machines. |
| Elevator Equipment | Provides stable voltage for elevator control systems, ensuring safe operation. |
| Textile Industry | Provides stable power for embroidery textile equipment, light textile equipment. |
| Air Conditioning System | Provides stable voltage for central air conditioning systems, ensuring normal operation. |
| Broadcasting and Television | Provides stable power for broadcasting and television transmission equipment, relay equipment. |
| Building Lighting | Provides stable voltage for building lighting systems, protecting lighting equipment. |
| Item | Detail |
|---|---|
| Quality System | ISO9001 Quality Management System Certification |
| Product Certification | CE Certified (Compliant with relevant standards) |

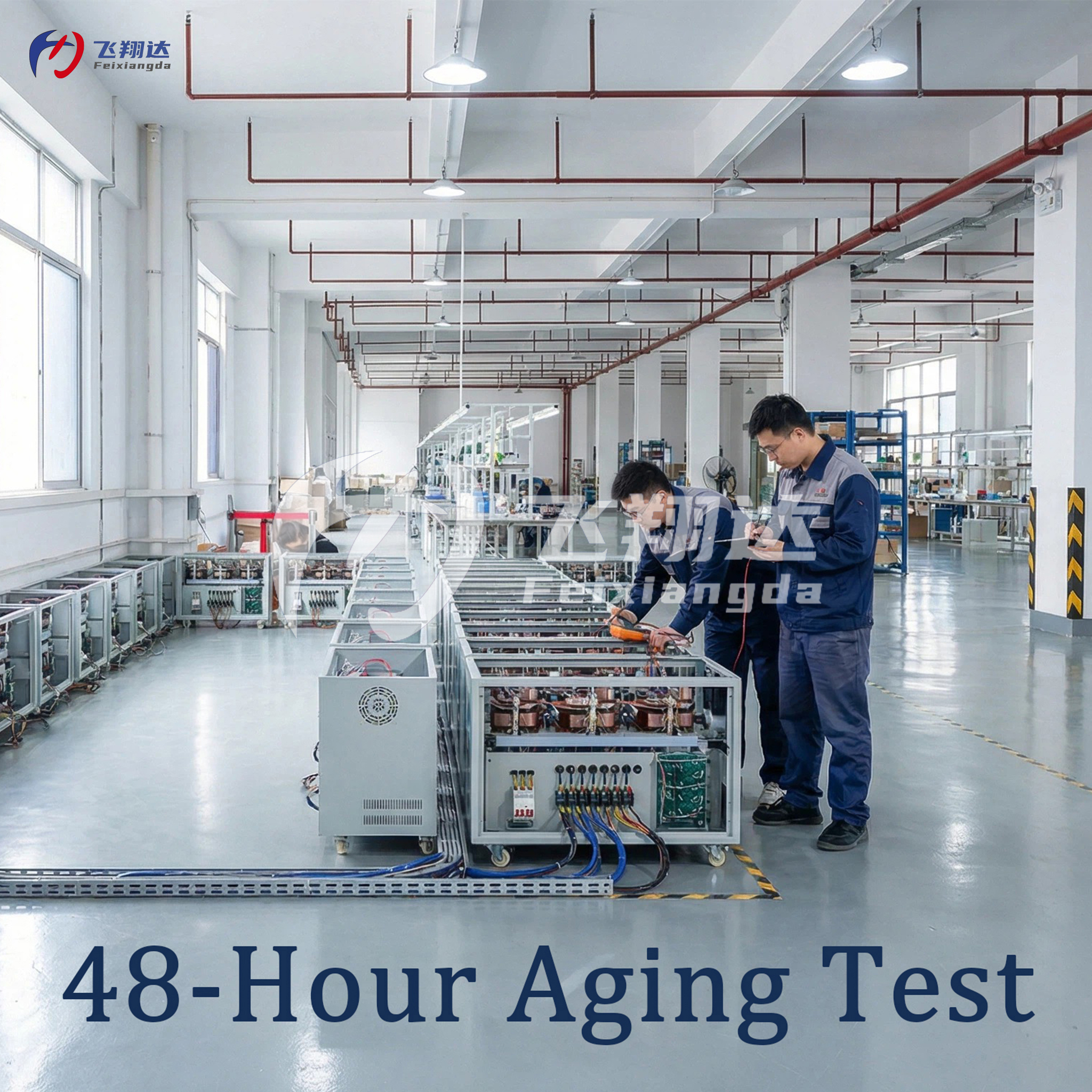

| Testing Process | 100% full inspection + 48-hour full-load aging test |
| Warranty | 12 months standard warranty, extendable to 36 months |
| After-sales Service | Lifetime technical support, 7×24 rapid response |
| Advantage | Description |
|---|---|
| Source Factory | Nearly 20 years of power equipment manufacturing experience, own production lines, cost-controlled, guaranteed delivery. |
| Quality Assurance | 100% inspection + 48-hour aging test, ISO9001 certified, product yield rate over 99.7%. |
| Flexible Customization | Supports non-standard customization for capacity, voltage, voltage stabilizing accuracy, etc., meeting special requirements. |
| Global Service | 7×24 technical support, 12-month warranty (extendable), lifetime maintenance. |
| Professional Team | Experienced R&D engineers and foreign trade team, providing selection guidance and technical consultation. |
| Technical Accumulation | Nearly 20 years of power equipment manufacturing technical accumulation, mature and reliable products, compliant with international standards. |
FAQ
Q1: What is the difference between SBW high-power compensated voltage stabilizer and ordinary voltage stabilizer?
A: The SBW series adopts compensated voltage regulation technology, featuring large capacity, high efficiency, no waveform distortion, stable voltage regulation, suitable for high-power load scenarios. Ordinary voltage stabilizers have smaller capacity and are suitable for medium and small power equipment.
Q2: What is the efficiency of this voltage stabilizer?
A: Work efficiency ≥98%, low energy conversion loss, energy saving and environmentally friendly.
Q3: What is the input voltage range of this voltage stabilizer?
A: Input voltage is AC 380V ± 15%, adaptable to different power grid environments.
Q4: What protection functions does this voltage stabilizer have?
A: It features automatic voltage stabilization, manual voltage regulation, under phase indication, over/under voltage alarm, short circuit protection, overload protection and other protection functions.
Q5: Can this voltage stabilizer operate continuously for a long time?
A: Yes. The design life is 20 years, can operate continuously for a long time, stable and reliable performance.
Q6: Does this voltage stabilizer support manual and automatic switching?
A: Yes. Automatic and manual switching at will, flexible and convenient use, adapting to different operational needs.
Q7: What customization options are available for the SBW High-Power Compensated Voltage Stabilizer?
A: We offer tailored solutions to meet your industrial needs, including adjustable voltage stabilizing accuracy and capacity ranging from 60KVA to 120KVA. Our sbw compensated voltage regulator can be adapted for specific voltage and protection requirements to fit diverse operational conditions.
Q8: How do I install the three phase voltage stabilizer properly?
A: We provide detailed guidelines to ensure correct installation. The three phase voltage stabilizer is designed for indoor use with IP20 protection, dry air cooling, and must be operated within specified temperature and humidity levels for optimal performance and longevity.
Q9: Can you explain the maintenance requirements for your industrial voltage stabilizer?
A: Our industrial voltage stabilizer requires minimal maintenance thanks to high durability and dry air cooling. Routine checks on connections, ventilation, and protection systems are recommended to ensure continuous operation and to maintain its 20-year design life.
Q10: What are the logistics and delivery terms for purchasing the SBW voltage stabilizer from your company?
A: We manage global logistics with professional packing and shipping to protect the SBW voltage stabilizer during transit. Lead times depend on order specifics, but we strive for timely delivery and will assist you with customs and documentation as needed.
