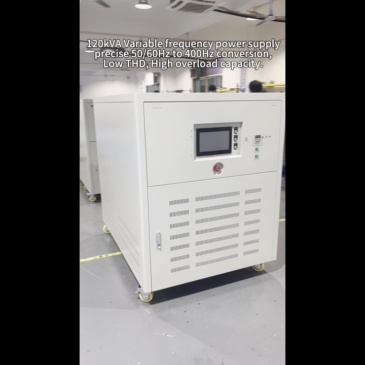

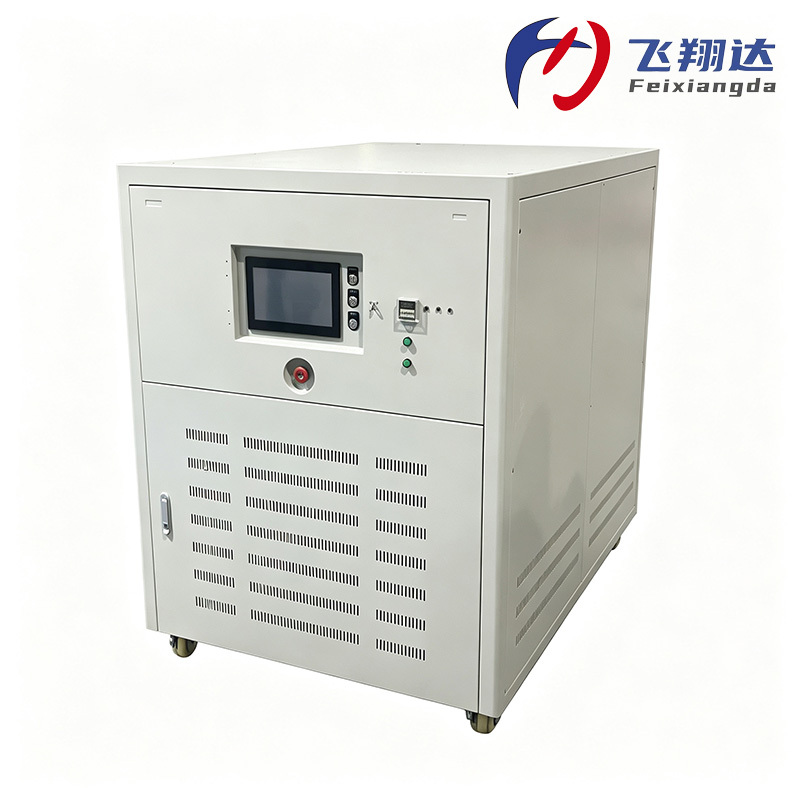

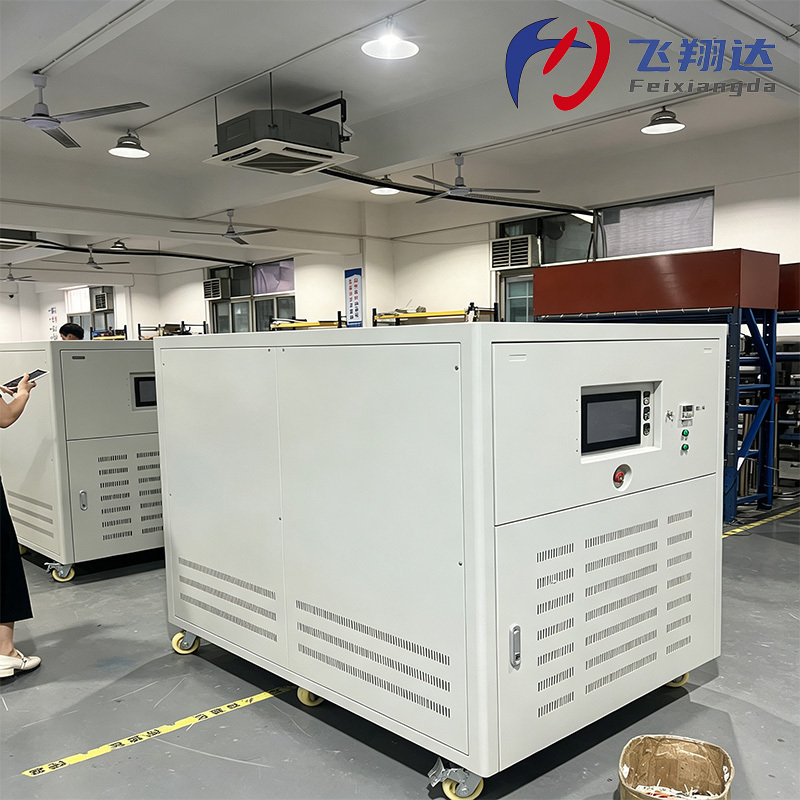

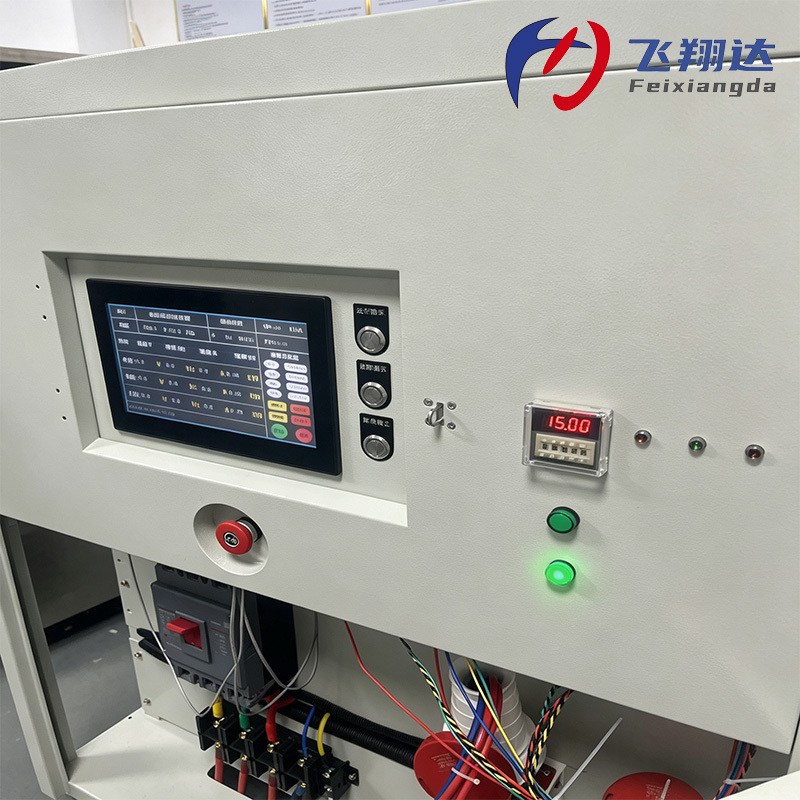

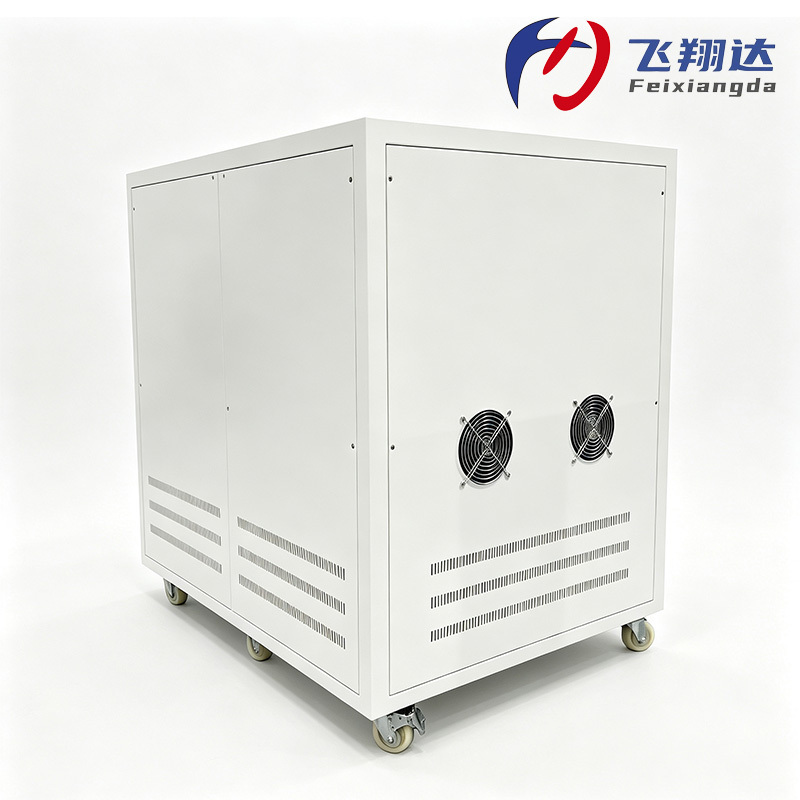

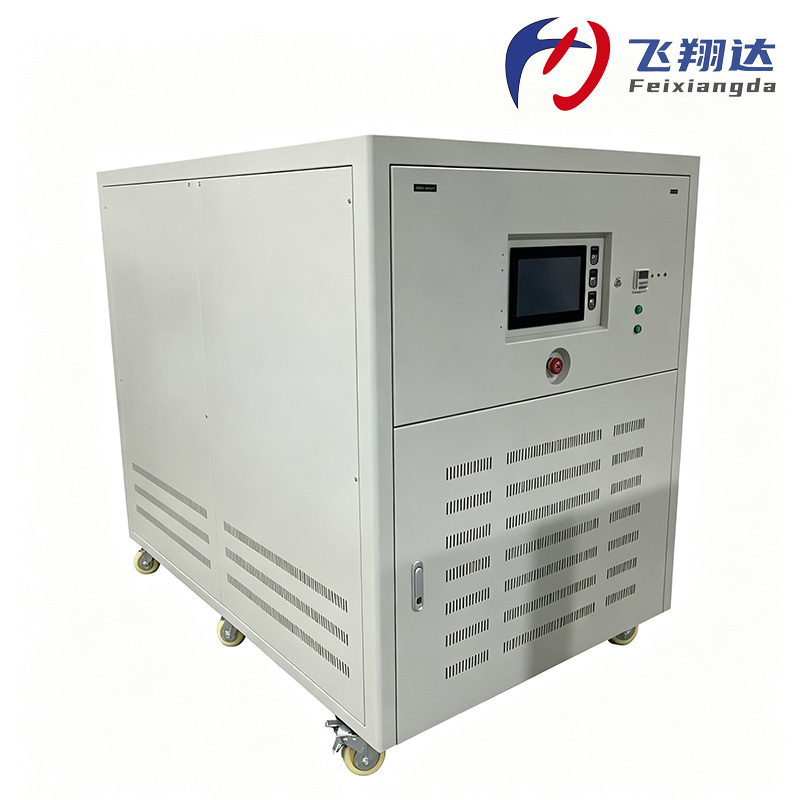

This 120kVA high-performance power supply integrates frequency conversion, voltage transformation, and isolation. It utilizes high-frequency PWM technology and IGBT power components to deliver a stable, pure sine wave output. This unit can simulate standard grid voltages from countries around the world, making it ideal for testing electrical appliances, export product inspection, and industrial applications.
120kVA three-phase variable frequency power supply with 0~520V adjustable output, 40~120Hz, pure sine wave, IGBT technology. Ideal for export testing and industrial applications.
| Parameter | Specification |
|---|---|
| Model | FXDBPDY-120KVA |
| Power Capacity | 120kVA |
| Input Phase | Three-phase, 4-wire + Ground |
| Input Voltage | 380V ± 10% |
| Input Frequency | 50Hz / 60Hz ± 5% |
| Input Current | ~200A (at 380V, full load) |
| Output Phase | Three-phase, 4-wire + Ground |
| Output Voltage (Line) | Low Range: 0~260V; High Range: 0~520V |
| Output Voltage (Phase) | Low Range: 0~150V; High Range: 0~300V |
| Output Frequency | 40~120Hz (Continuously Adjustable);400Hz optional (please inquire) |
| Rated Current (High Gear) | ~133A (at 520V line) / ~266A (at 260V line) |
| Waveform Distortion (THD) | ≤ 2% (Resistive Load) |
| Voltage Regulation | ≤ ±1% (Load regulation) |
| Frequency Stability | ≤ ±0.01% |
| Voltage Recovery Time | ≤ 2ms (100% load step) |
| Efficiency | ≥ 85% |
| Protection | Over-current, Over-voltage, Over-temperature, Short circuit, Phase loss |
| Insulation Resistance | ≥ 200MΩ (500VDC) |
| Cooling Method | Forced Fan Cooling |
| Noise Level | < 65dB(A) |
| Operating Temperature | -10℃ ~ +45℃ |
| Dimensions (approx.) | ~1050 x 860 x 1300 mm (40.9 x 33.9 x 51.2 in) |
| Weight (approx.) | ~950 kg (2094 lbs) |
Shenzhen Feixiangda Electronics Co., Ltd. is a professional manufacturer of power supply equipment. We focus on providing high-quality, reliable power solutions for global clients.
Certifications: CE / ISO
