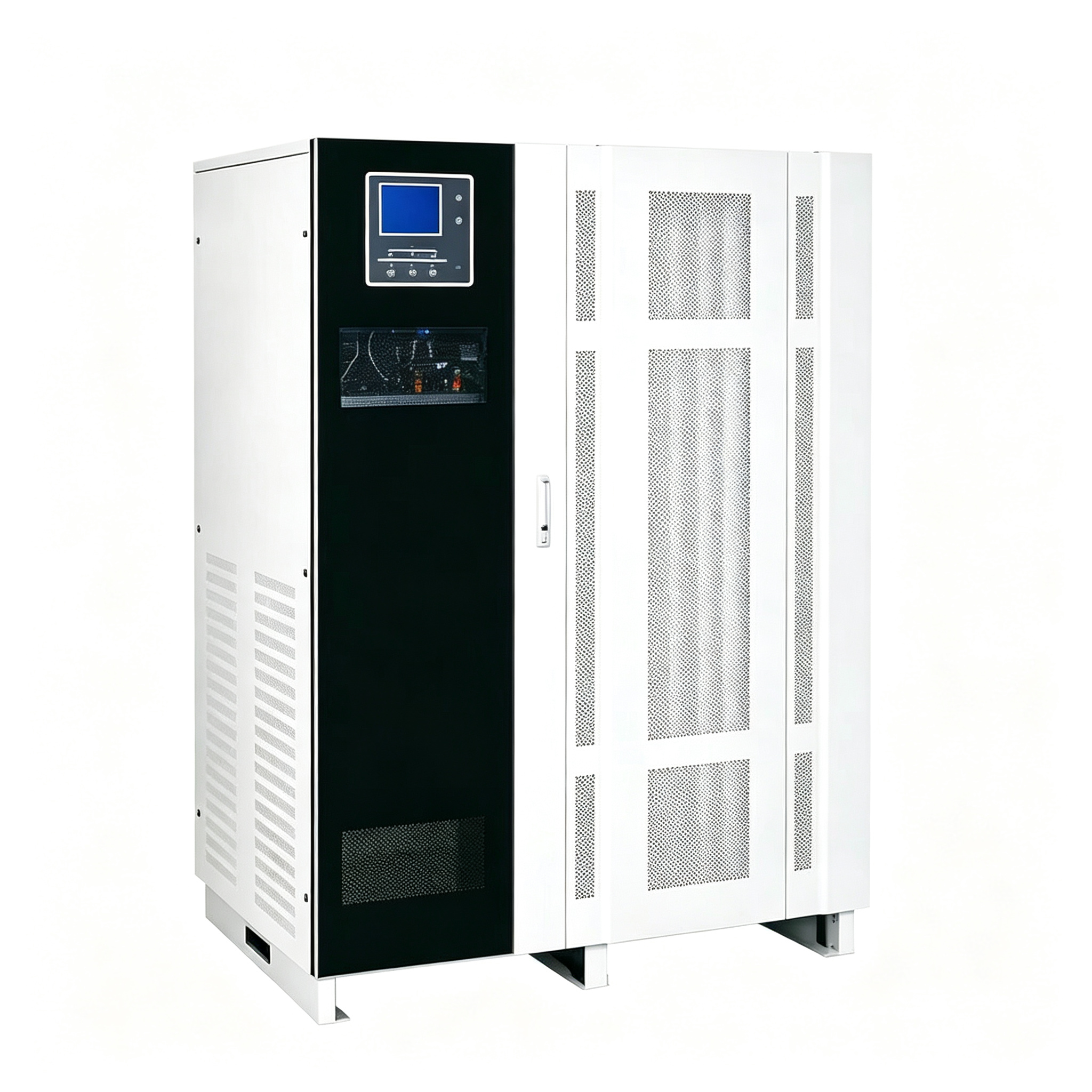

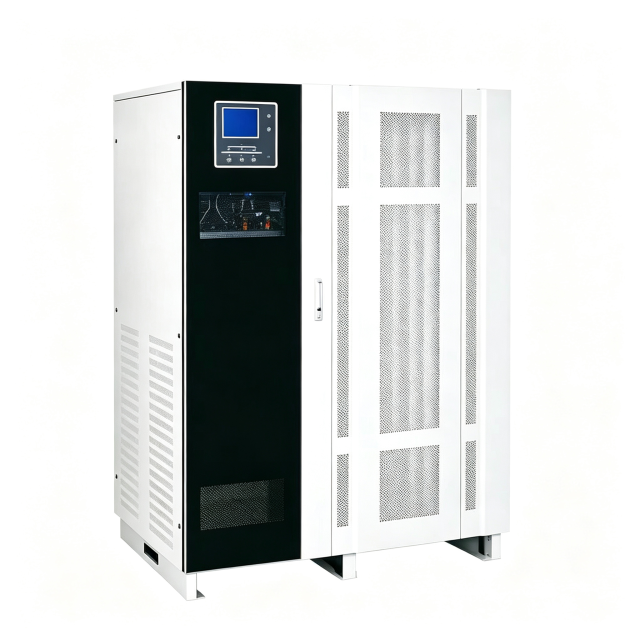

Feixiangda T3000 Series 200KVA three phase industrial frequency online UPS features a built-in output isolation transformer and full DSP digital control core, delivering clean, zero-interruption three-phase power for data centers, medical imaging and industrial automation. It offers 380V±25% ultra-wide input, 0ms seamless transfer, N+X parallel redundancy and ECO mode with efficiency up to 98%.
Product Overview

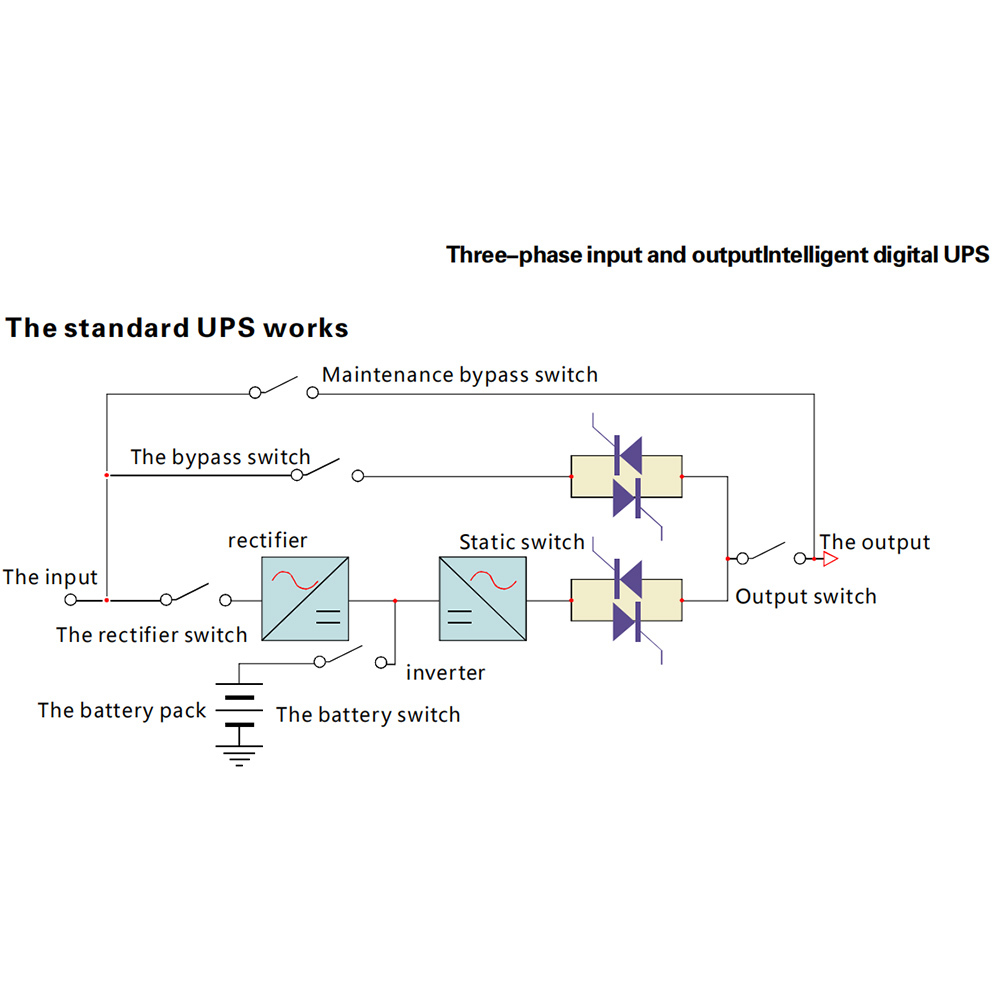

The Feixiangda T3000 Series 200KVA three phase industrial frequency online UPS is a high-reliability uninterruptible power supply designed for medium to large critical loads. Its Online Double Conversion architecture, combined with a built-in output isolation transformer, achieves complete electrical isolation between input and output — thoroughly filtering grid harmonics, surges, frequency drift and voltage distortion to deliver clean, stable sine-wave power to downstream equipment. Powered by a high-speed DSP digital chip with ASIC DDC control technology and IGBT rectifier / SCR inverter power devices, it delivers high control precision, fast dynamic response and comprehensive protection. With 32 sensors deployed throughout and DSP point-to-point ultra-high-speed detection, the system can report up to 200 fault messages for true intelligent self-diagnosis and self-protection.
Key Technical Specifications
Rated capacity 200KVA / 160KW; three-phase input / three-phase output (3P+N+G); input voltage 380VAC ±25%, frequency 50/60Hz ±10%; bypass voltage 380VAC ±15%; transfer time 0ms (synchronous); output voltage accuracy ±1% (steady state); sine wave output with THD <2% (linear) and <4% (non-linear load); transient recovery <10ms; dynamic load voltage transient <5%; unbalanced voltage ≤±1% (balanced load); overall efficiency ≥93%, up to 98% in ECO mode.
Key Features
· Output Isolation Transformer: Standard industrial frequency isolation transformer reduces load harmonic current and grid interference with strong surge withstand — ideal for inductive loads and industrial sites.
Typical Applications
Enterprise data centers and server rooms; medical imaging equipment such as 3.0T MRI / CT; industrial automation lines and robotic arms; CNC / SMT precision equipment; telecom base stations and switching rooms; financial data centers; rail transit signalling systems; intelligent warehousing and quality inspection equipment.
Quality & Service

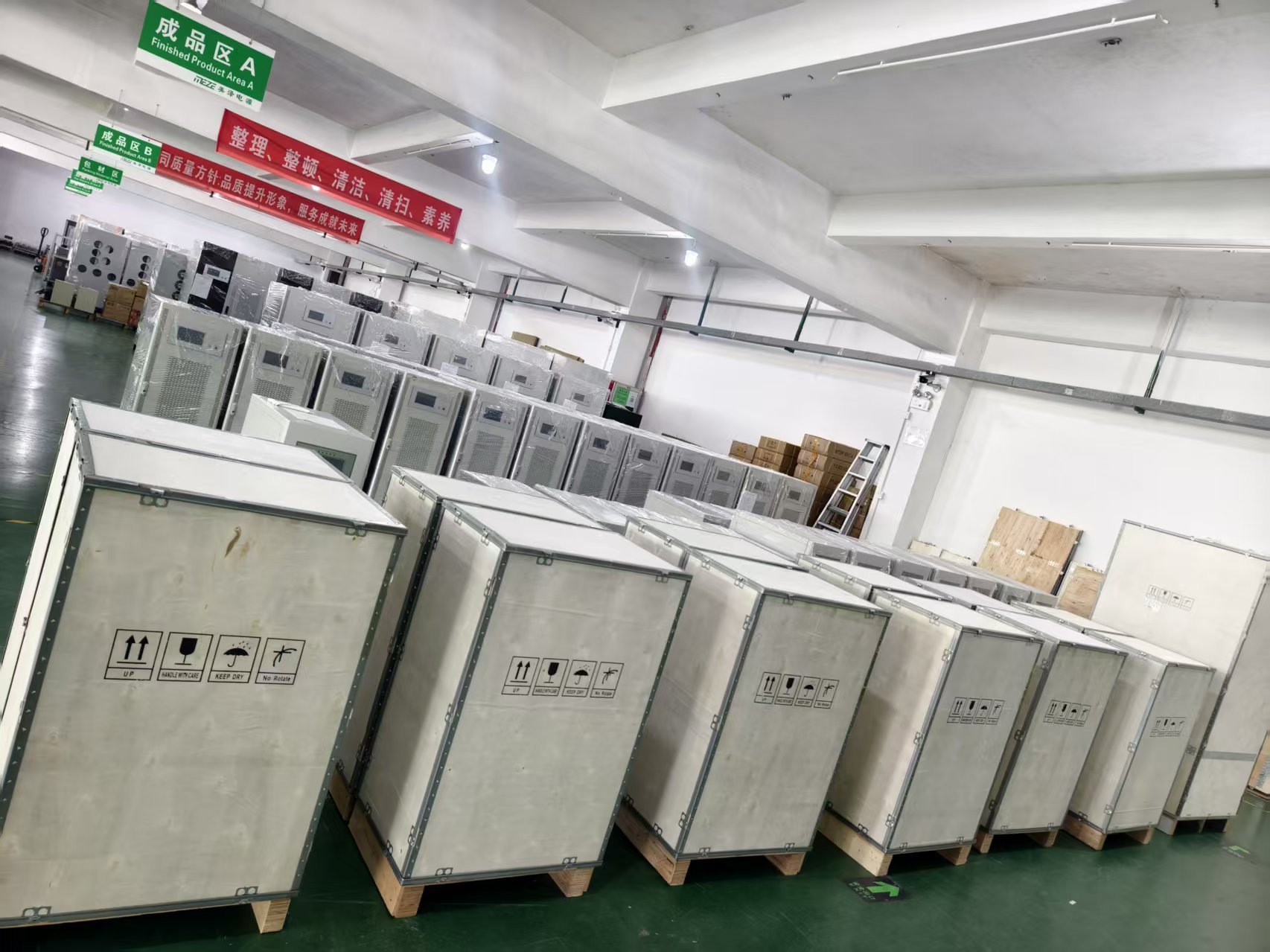

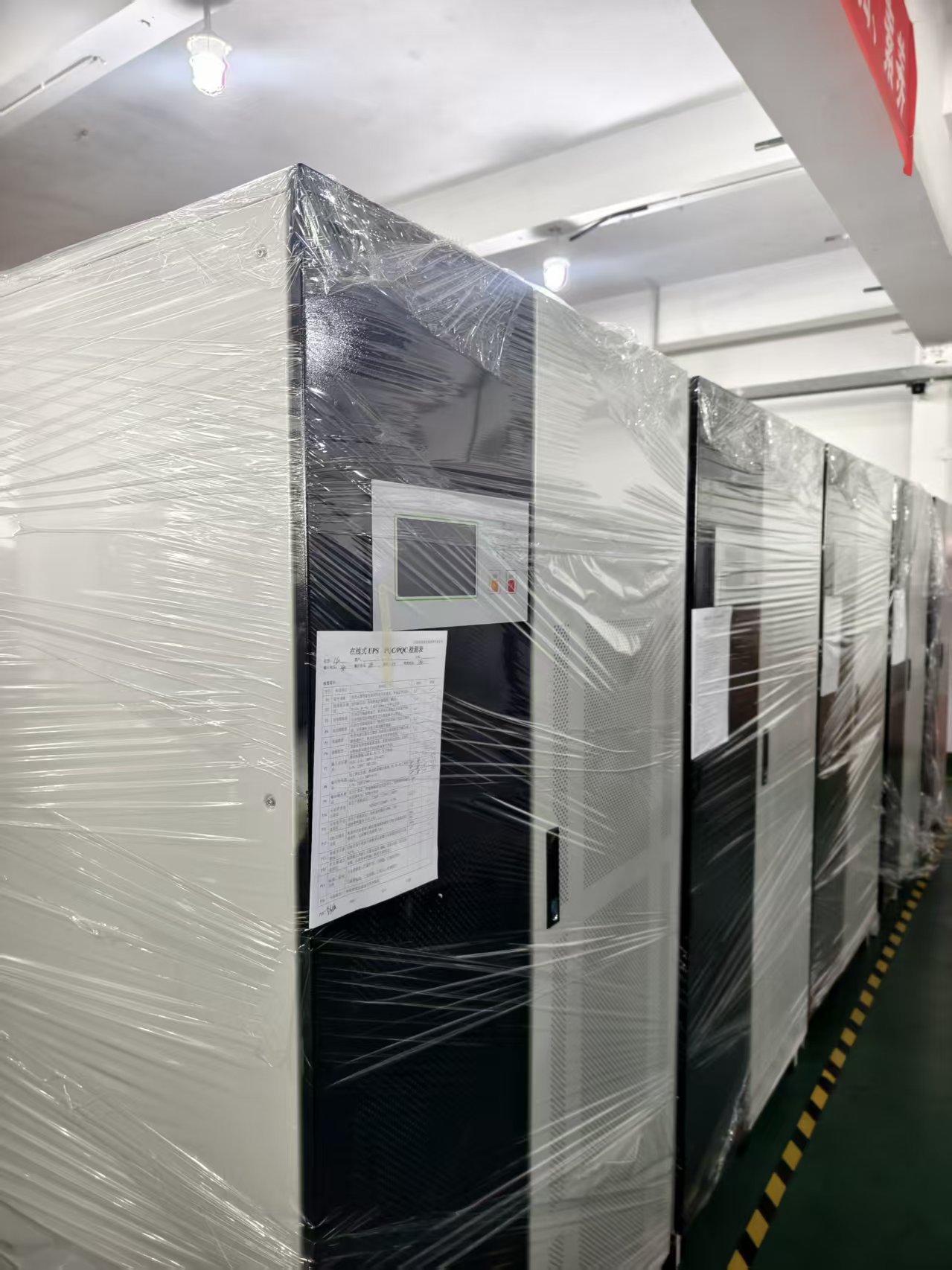

Founded in 2006, Shenzhen Feixiangda Electronics Co., Ltd. is an industry-and-trade integrated power manufacturer with a 20,000 m² modern factory, fully automated production lines and over 20 years of expertise in power solutions, exporting to 30+ countries worldwide. CE certified, holding UPS control software copyright (Reg. No. 7193282) and multiple utility model patents. We provide a 1-year warranty with lifetime maintenance, and a 24-hour service|

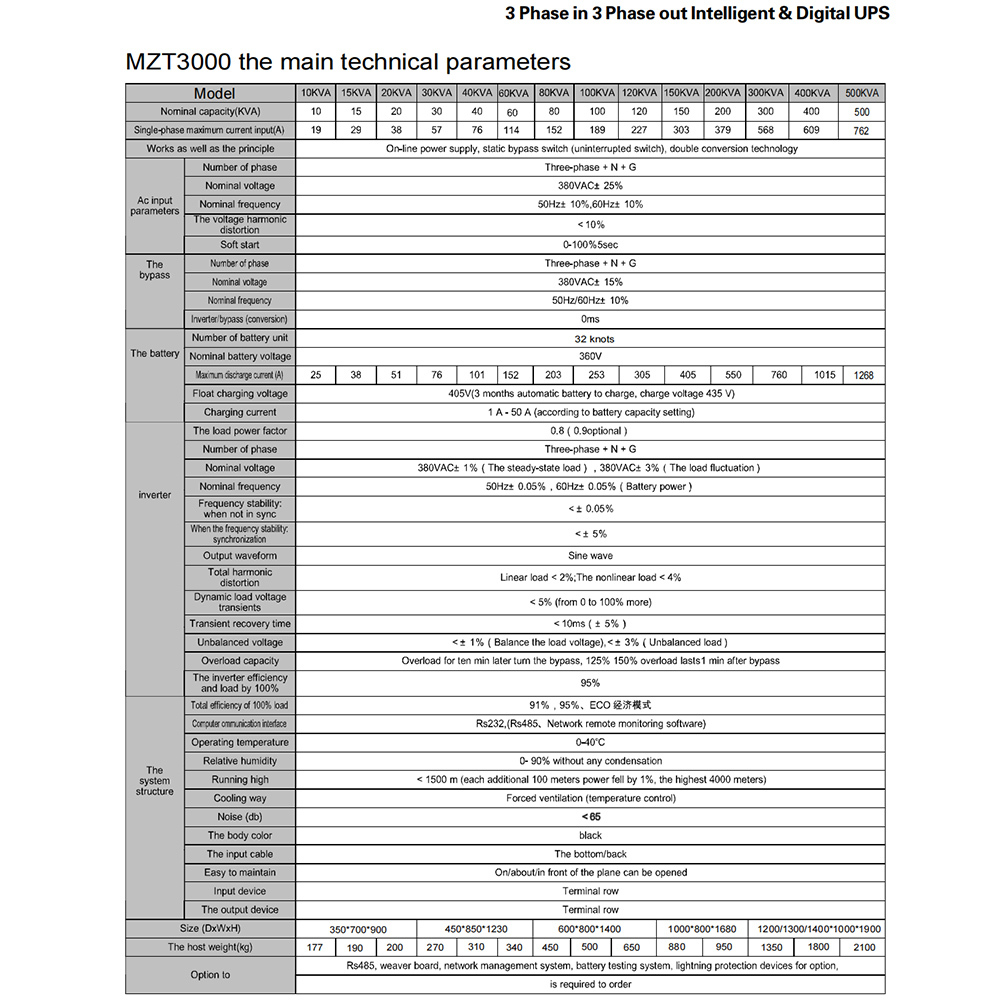

Parameter |
200KVA |
Data Source |
|
Model |
T3000-200KVA |
Measured (series naming rule) |
|
Rated Capacity |
200KVA / 160KW (PF 0.8) |
Measured (spec sheet basis) |
|
Phase |
3-Phase + N + G In / Out |
Measured |
|
Input Voltage |
380VAC ±25% |
Measured |
|
Input Frequency |
50Hz / 60Hz ±10% |
Measured |
|
Bypass Voltage |
380VAC ±15% |
Measured |
|
Transfer Time |
0ms (synchronous) / ＜4ms (out-of-sync) |
Measured |
|
Output Voltage |
380VAC ±1% (steady) / ±3% (load fluctuation) |
Measured |
|
Output Waveform |
Sine wave, THD＜2% (linear) / ＜4% (non-linear) |
Measured |
|
Transient Recovery |
＜10ms (±5%) |
Measured |
|
Battery Configuration |
32 pcs / 360VDC (adjustable) |
Needs confirmation |
|
Charging Current |
1A~50A (per battery capacity) |
Measured |
|
Overall Efficiency |
≥93% (AC mode) / ≥95%, up to 98% (ECO) |
Measured |
|
Overload Capacity |
10min → bypass; 125% / 150% for 1min → bypass |
Measured |
|
Max Input Current (single-phase) |
Approx. 378A |
Calculated from 100KVA:189A |
|
Dimensions (H×W×D) |
Approx. 1850 × 1200 × 900 mm |
H185 / W120cm measured, depth calculated |
|
Net Weight |
Approx. 900~1100 kg |
Calculated from 100KVA:500kg |
|
Cooling Method |
Forced air cooling (temperature controlled) |
Measured |
|
Noise Level |
＜65 dB |
Measured |
|
Operating Temperature |
0°C ~ 40°C |
Measured |
|
Altitude |
＜1500m (derate 1% per 100m above, max 4000m) |
Measured |
|
Communication Interface |
RS232 / RS485 (remote monitoring supported) |
Measured |
|
Display |
7" / 10" touch screen LCD (CN/EN bilingual) |
Measured |
|
Protection |
Short circuit / over-voltage / under-voltage / phase loss / overload / battery low-voltage |
Measured |
|
Certification |
CE |
Measured |
|
Warranty |
1-year warranty, lifetime maintenance |
Measured |
