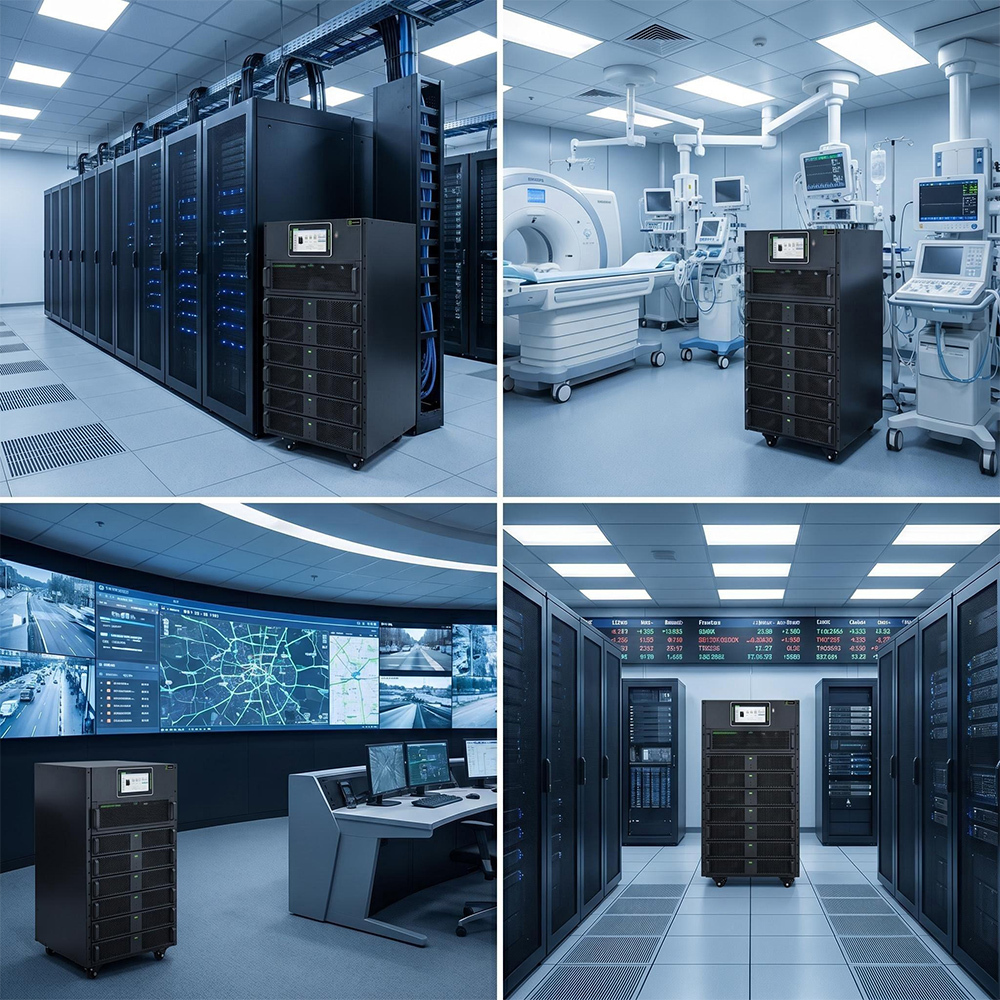

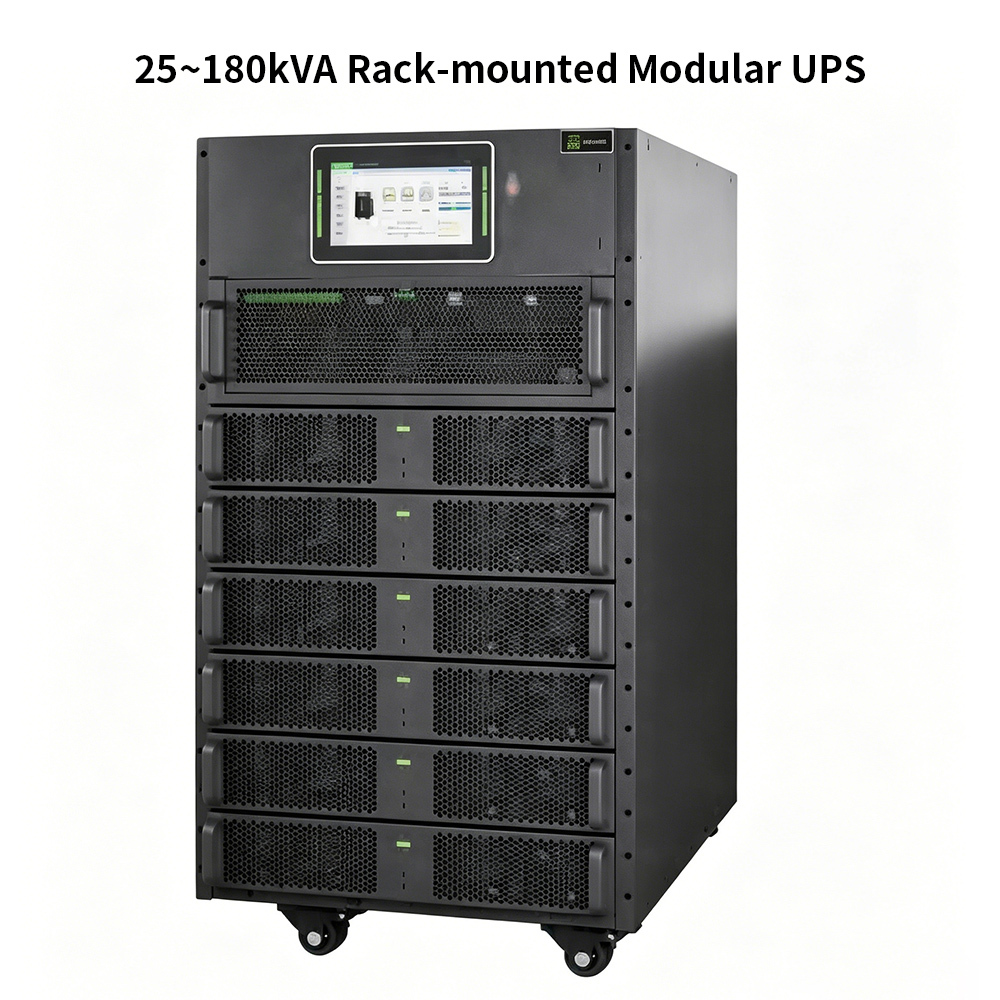

ACM Series Modular UPS 10-600kVA Phased Deployment Flexible Expansion Input PF>0.99 Output PF=1 Ultra Wide Input Voltage Range Optional 30A Charging Module For Government Medical Education Energy

Product Description

Functional Positioning for Critical Infrastructure

The ACM Series Modular UPS is engineered to serve demanding sectors requiring high reliability and uninterrupted power. Its modular architecture supports phased deployment, ideal for organizations expanding their power capacity over time without initial excess cost. As a product from a trusted digital ups manufacturer, it specifically targets users managing large-scale critical operations, including IT data centers and industrial automation, where power continuity and system uptime are crucial. Its compatibility with three phase digital ups configurations ensures seamless integration into complex electrical infrastructures demanding high stability and performance.

Advanced Technical Specs for Reliable Operation

This data center ups system operates on full digital DSP control technology, delivering exceptional precision in power conversion with an input power factor exceeding 0.99 and an output power factor at unity. Its efficiency peaks at 96%, lowering operational costs while the ultra-wide input voltage range (304-478Vac) accommodates fluctuations common in industrial frequency ups applications. Modular hot-swappable power modules increase maintainability by enabling quick replacements without downtime, complemented by user-friendly 7 or 10-inch LCD touchscreens providing real-time monitoring. Optional 30A charging modules enhance battery charging flexibility and system endurance.

Industry Applications Delivering Real-World Impact

Designed for environments where power integrity is paramount, the ACM Series supports sectors such as data centers, telecommunications, hospitals, and manufacturing facilities. In these settings, this data center ups system safeguards critical servers, network equipment, and industrial control systems against power interruptions. Its robustness aligns with the stringent demands of industrial frequency ups deployments in factories and energy dispatch centers, ensuring compliance with reliability standards and reducing business risks while streamlining maintenance and scalability through modular design.

Product Advantages

Structural and System Design Benefits

The ACM Series Modular UPS incorporates a modular, hot-swappable chassis design facilitating flexible phased deployment and capacity expansion from 10kVA to 600kVA. This architecture from a reputable digital ups manufacturer allows independent replacement of power, bypass, and charging modules, ensuring uninterrupted load operation during maintenance. Its compact 2U module height supports efficient rack space utilization aligning with industrial ups supplier standards, while the system’s ultra-wide input voltage range enhances adaptability to unstable power grids typical in demanding industrial frequency ups contexts.

Performance-Driven Usability and Operational Value

Featuring DSP full digital control, the ACM Series provides stable, high-efficiency power conversion maintaining an input power factor >0.99 and output power factor of 1, essential for sensitive equipment protection. The integrated LCD touchscreen interface delivers intuitive system control and real-time diagnostics, reducing operational complexity for technical personnel. Optional charging modules increase backup time, providing enhanced end-user confidence in extended outage resilience. As an industrial ups supplier product, it offers a balance of performance and maintainability, optimizing total cost of ownership and ensuring system availability for critical applications.

Feixiangda's ACM series modular UPS adopts modular, hot-swappable design. Power modules, bypass modules, and charging modules can be quickly replaced, allowing maintenance without affecting load operation, greatly improving system availability. The system capacity supports phased deployment, power module quantity can be configured according to actual needs, low initial investment, flexible expansion later. It features DSP full digital control, all power conversion stages including rectification, inversion, charging, and discharging are digitally controlled, with high control precision and strong system stability. Extreme power density, 30kW module in only 2U height, easy to install, space-saving, and easy to maintain.

Widely used in government, finance, telecommunications, education, transportation, meteorology, broadcasting, industry and commerce, medical, energy and other industries, providing the highest level of power protection for data centers, computer rooms, and critical equipment.

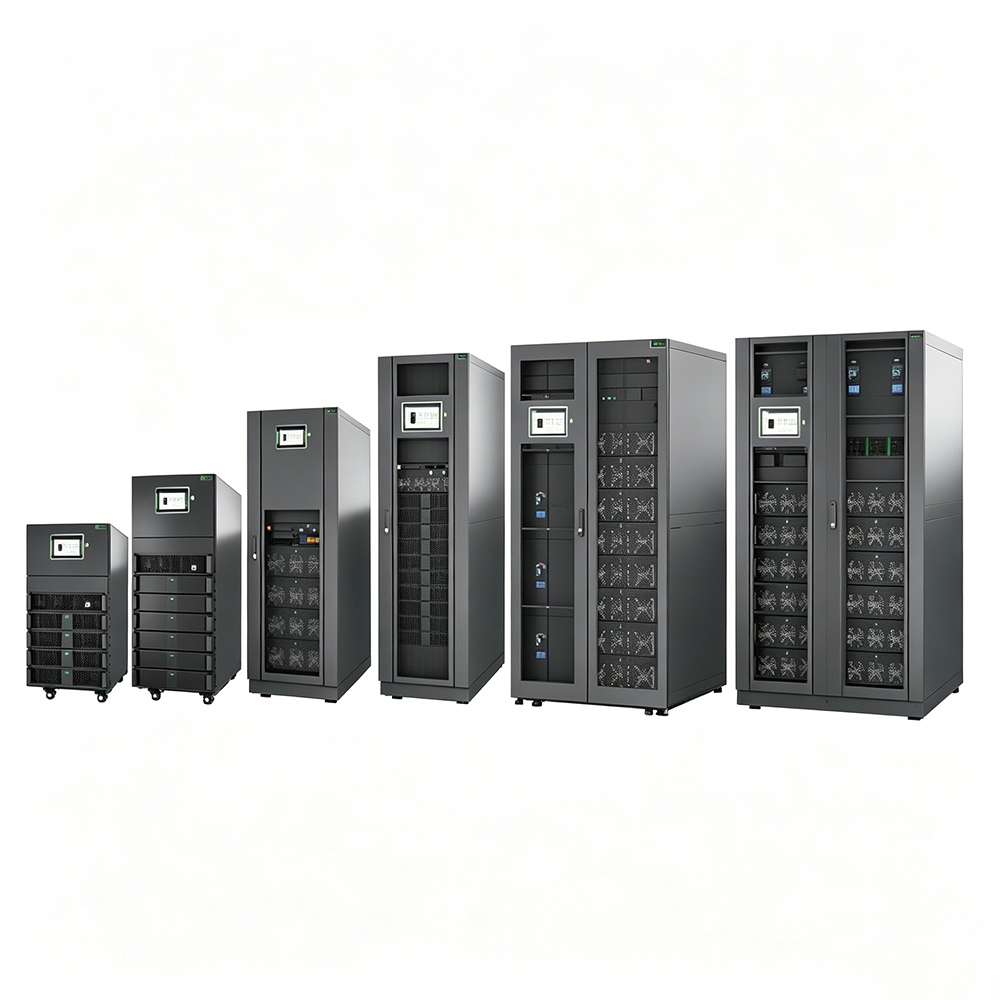

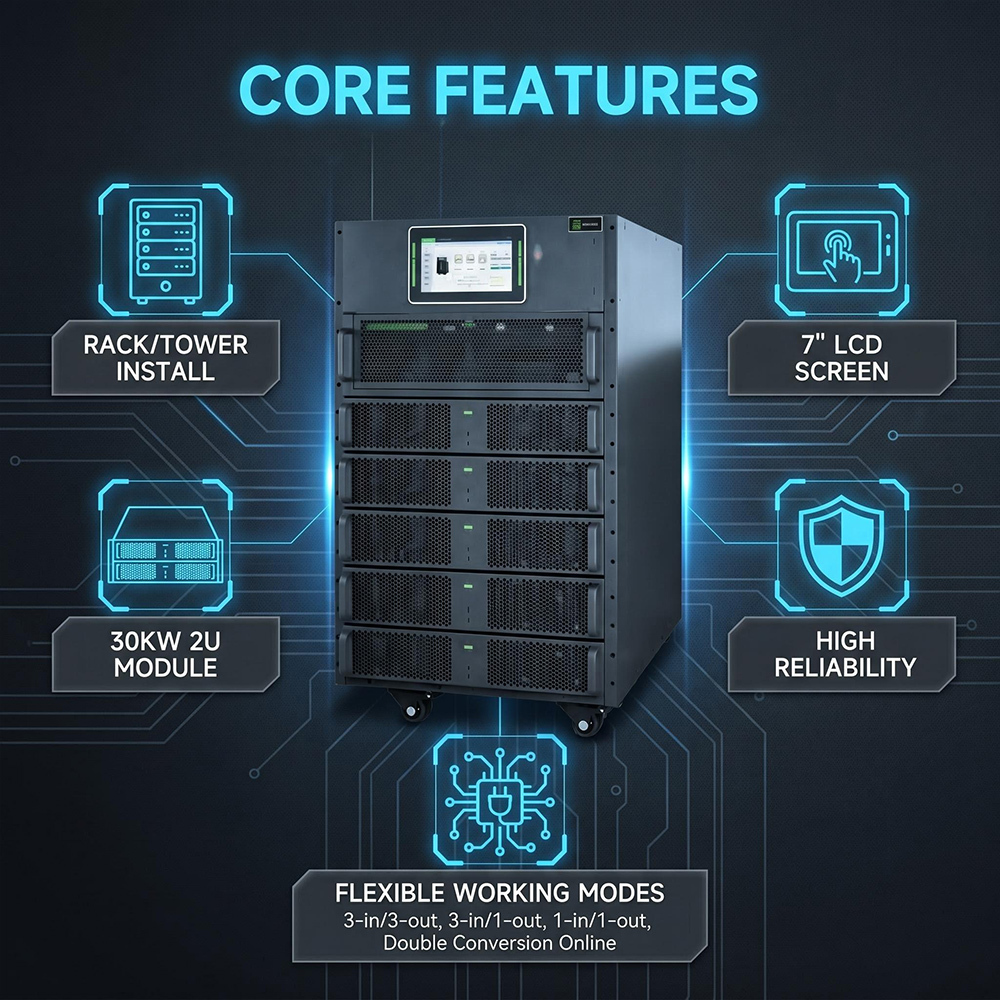

Power Range: 10kVA ~ 600kVA (covering multiple sub-series)
Operation Mode: 3/3, 3/1, 1/1, Double Conversion On-line
Installation: Rack-mounted / Tower
Output Power Factor: 1
System Efficiency: Up to 96%

The ACM series modular UPS works based on the double conversion on-line principle:

1. Normal Mode (Line Mode): The mains input is converted to DC power by the rectifier, and the DC power is then converted to clean and stable AC power by the inverter for output to the load. At the same time, the charger float charges the battery.
2. Battery Mode: When the mains is abnormal, the UPS automatically switches to battery mode. The DC power from the battery is converted to AC power by the inverter, with zero transfer time, and the load is not affected.
3. Bypass Mode: When the UPS experiences overload, over-temperature or inverter failure, the static switch automatically transfers the load to the bypass power source, powered directly by the mains, ensuring continuous load operation.
4. Modular Architecture: The system consists of multiple power modules connected in parallel, each module works independently. When a module fails, other modules continue to supply power, the system automatically isolates the faulty module without affecting load operation. Supports hot-swappable replacement of faulty modules.

Use Scenarios

Protecting Data Center Power Integrity

In the data center environment, the ACM Series Modular UPS functions as a primary line of defense against power interruptions, voltage sags, and surges. It ensures continuous power delivery to servers, networking hardware, and storage systems, complying with strict uptime requirements typical of comprehensive data center ups system deployments. Its modular design enables scalable capacity planning, matching power needs dynamically while supporting complex three phase digital ups architectures for stable redundancy. Integration with data center management software facilitates proactive monitoring and rapid response to power anomalies.

Supporting Industrial Automation and Control Systems

Within manufacturing facilities, the ACM Series safeguards sensitive industrial automation devices, PLCs, and energy dispatching systems, which require constant power continuity to prevent operational downtime. The unit’s robust design and capacity for flexible expansion make it ideal for industrial frequency ups applications where power quality impacts production reliability. Its adaptable input voltage range ensures stable performance despite variable industrial power conditions, and hot-swappable modules allow swift maintenance without halting critical processes. Coordination with existing power management systems enhances overall plant efficiency and operational compliance.

The DSP digital processor monitors input voltage, output voltage, load, battery status and other parameters in real-time, achieving precise control and fast response.

Item	ACM 10-120kVA	ACM 25-180kVA	ACM 25-300kVA	ACM 50-600kVA
Rated Capacity	10-120kVA	25-180kVA	25-300kVA	50-600kVA
Operation Mode	3/3, 3/1, 1/1	3/3, 3/1, 1/1	3/3	3/3
Input Voltage	380/400/415Vac, 50/60Hz	380/400/415Vac, 50/60Hz	380/400/415Vac, 50/60Hz	380/400/415Vac, 50/60Hz
Input Voltage Range	304-478Vac (L-L) Full Load	304-478Vac (L-L) Full Load	304-478Vac (L-L) Full Load	304-478Vac (L-L) Full Load
Input Frequency Range	40-70Hz	40-70Hz	40-70Hz	40-70Hz
Input Power Factor	>0.99 (Full Load)	>0.99 (Full Load)	>0.99	>0.99
Output Voltage	380/400/415Vac, 50/60Hz	380/400/415Vac, 50/60Hz	380/400/415Vac, 50/60Hz	380/400/415Vac, 50/60Hz
Output Power Factor	1	1	1	1
System Efficiency	96%	96%	≥96.5%	≥96.5%

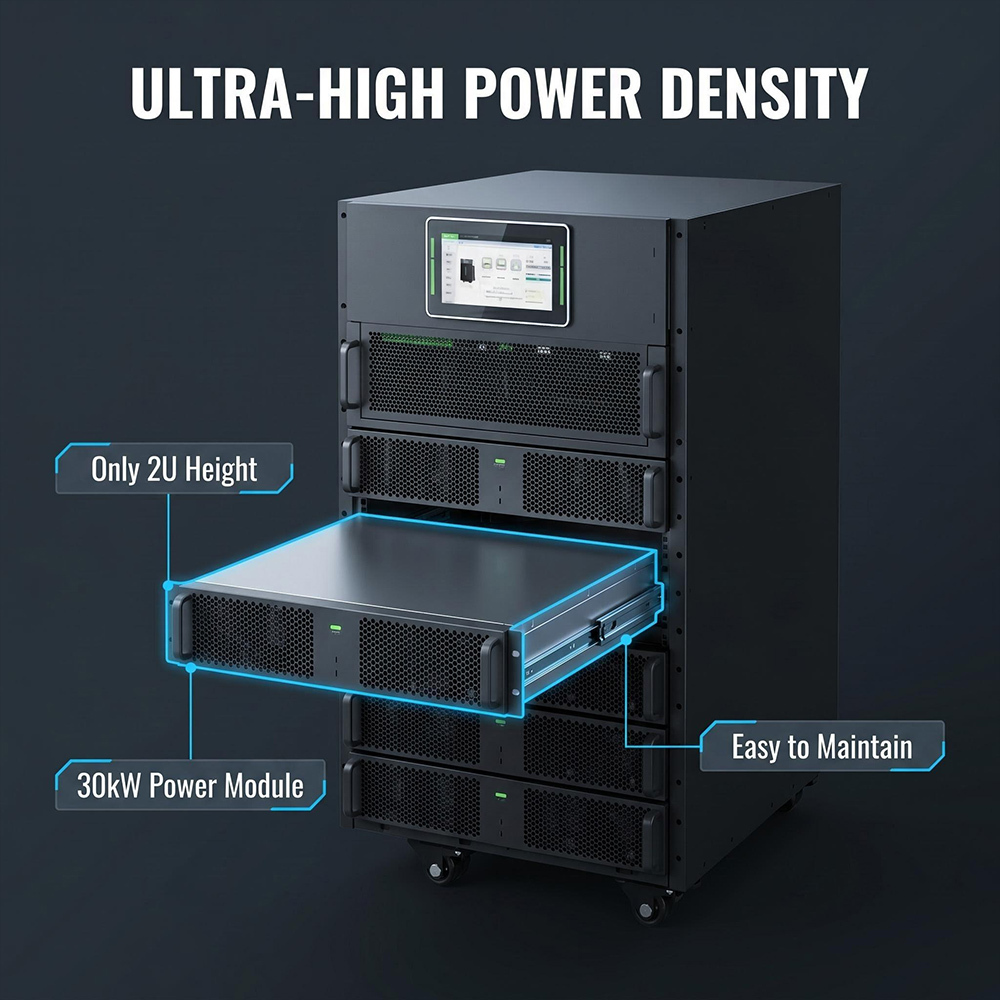

Module Capacity	10kVA/10kW or 25kVA/25kW	25kVA/25kW or 30kVA/30kW	25kVA/25kW or 30kVA/30kW	50kVA/50kW
Module Height	2U	2U	2U	2U
Display	7 inch LCD Touch Screen	7 inch LCD Touch Screen	10 inch LCD Touch Screen	7/10 inch LCD Touch Screen
Protection Level	IP20	IP20	IP20	IP20
Operating Temperature	0-40℃	0-40℃	0-40℃	0-40℃
Relative Humidity	5-95% (Non-condensing)	5-95% (Non-condensing)	0-95% (Non-condensing)	0-95% (Non-condensing)

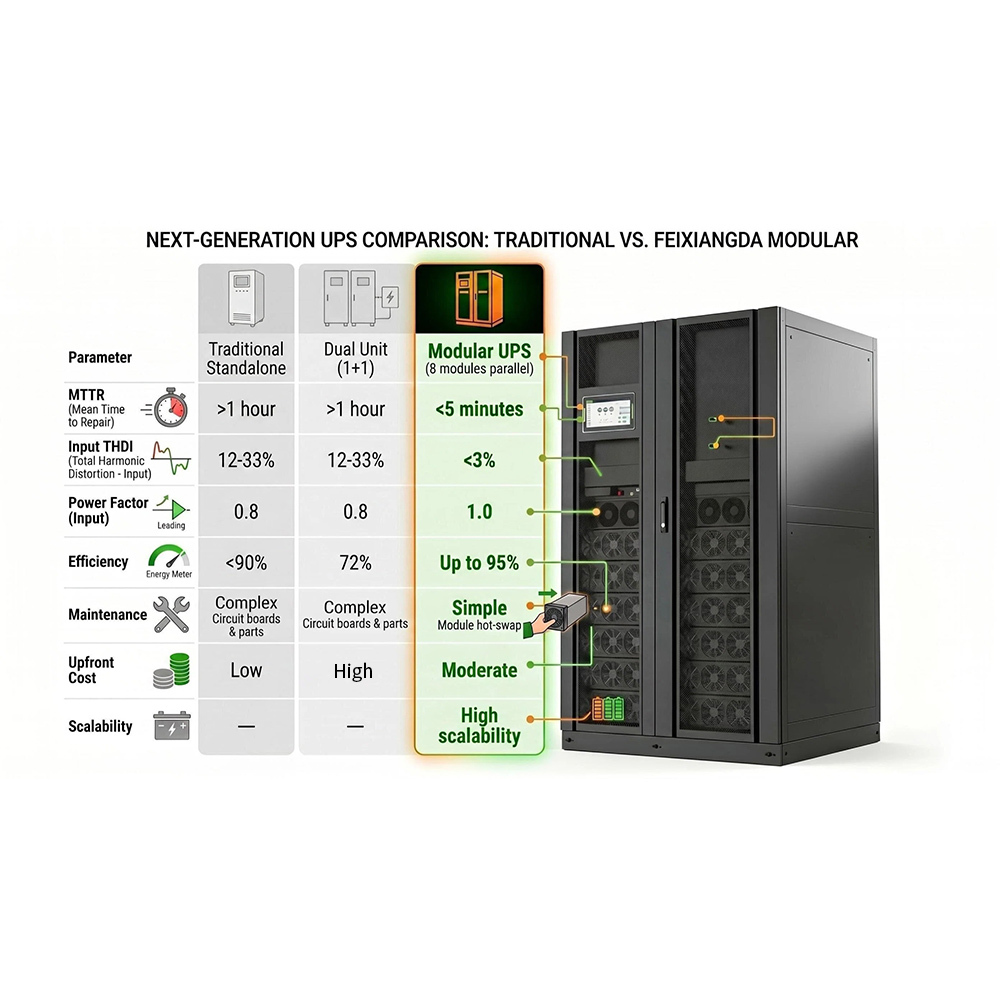

Q1: What is the difference between modular UPS and traditional tower UPS?
A: Modular UPS adopts modular hot-swappable design, power modules can be replaced independently without affecting load operation during maintenance. The system supports phased deployment, low initial investment, flexible expansion later. Traditional tower UPS is an integral design, requiring shutdown or bypass switching during maintenance. Modular UPS has higher availability and more flexible expansion.

Q2: What operation modes does the ACM series modular UPS support?
A: Supports three-phase input three-phase output, three-phase input single-phase output, single-phase input single-phase output, flexible configuration according to actual needs.

Q3: What is the module capacity and height of this UPS?
A: Different sub-series have different module capacities: 10-120kVA series module capacity is 10kVA/10kW or 25kVA/25kW; 25-180kVA and 25-300kVA series module capacity is 25kVA/25kW or 30kVA/30kW; 50-600kVA series module capacity is 50kVA/50kW. All modules are 2U height.

Q4: Does this UPS support hot-swapping?
A: Yes. Power modules, bypass modules, and charging modules all support hot-swapping, allowing replacement and maintenance without affecting load operation.

Q5: What is the system efficiency of this UPS?
A: 10-120kVA and 25-180kVA series system efficiency is 96%, 25-300kVA and 50-600kVA series system efficiency ≥96.5%, effectively reducing operating costs.

Q6: What communication interfaces does this UPS support?
A: Standard RS232, RS485, dry contact card, optional SNMP card (network management), AS400 card, parallel kit, LBS, etc., for remote monitoring and management.

Q7: What installation support do you provide for the ACM Series Modular UPS?
A:We offer comprehensive technical guidance for installing the ACM Series Modular UPS. Our team assists with configuration based on your power needs, ensuring proper setup for this three phase digital UPS system to guarantee stable and uninterrupted operation.

Q8: Can the ACM Series UPS be customized to specific power requirements?
A:Yes, the ACM Series Modular UPS supports phased deployment and flexible capacity expansion from 10kVA up to 600kVA. We can tailor power module configurations to meet your exact demands, ensuring an efficient and scalable industrial frequency ups solution.

Q9: What kind of maintenance is required for the modular UPS system?
A:Our modular design allows hot-swappable replacement of power, bypass, and charging modules without downtime. Routine inspections and firmware updates are recommended, and we provide detailed maintenance guidelines to help you maintain optimal industrial ups supplier standards.

Q10: How is the ACM Series UPS shipped and delivered internationally?
A:We follow strict packaging protocols to protect the system during transit. Our logistics partners ensure timely delivery worldwide, and we provide shipment tracking and documentation support. As an experienced digital UPS manufacturer, we are committed to smooth international supply chain management.

We look forward to becoming your reliable power solution partner!
