| Features | Advantage |
|---|---|
| ⚡ Online Double-Conversion | Pure sine wave output, zero transfer time, protects sensitive equipment from voltage fluctuations |
| 🔌 Built-in Isolation Transformer | Galvanic isolation between input and output, eliminates common-mode noise and ground loops |
| 🔋 Intelligent Battery Management | Auto battery testing, temperature compensation, extends VRLA battery service life |
| 📡 RS485 / SNMP Monitoring | Remote monitoring via network, supports centralized management of multiple UPS units |
The T3000-10KVA is a three-phase online UPS that provides continuous, clean power for critical industrial applications. With true double-conversion technology, it delivers a stable sine wave output regardless of input power quality.

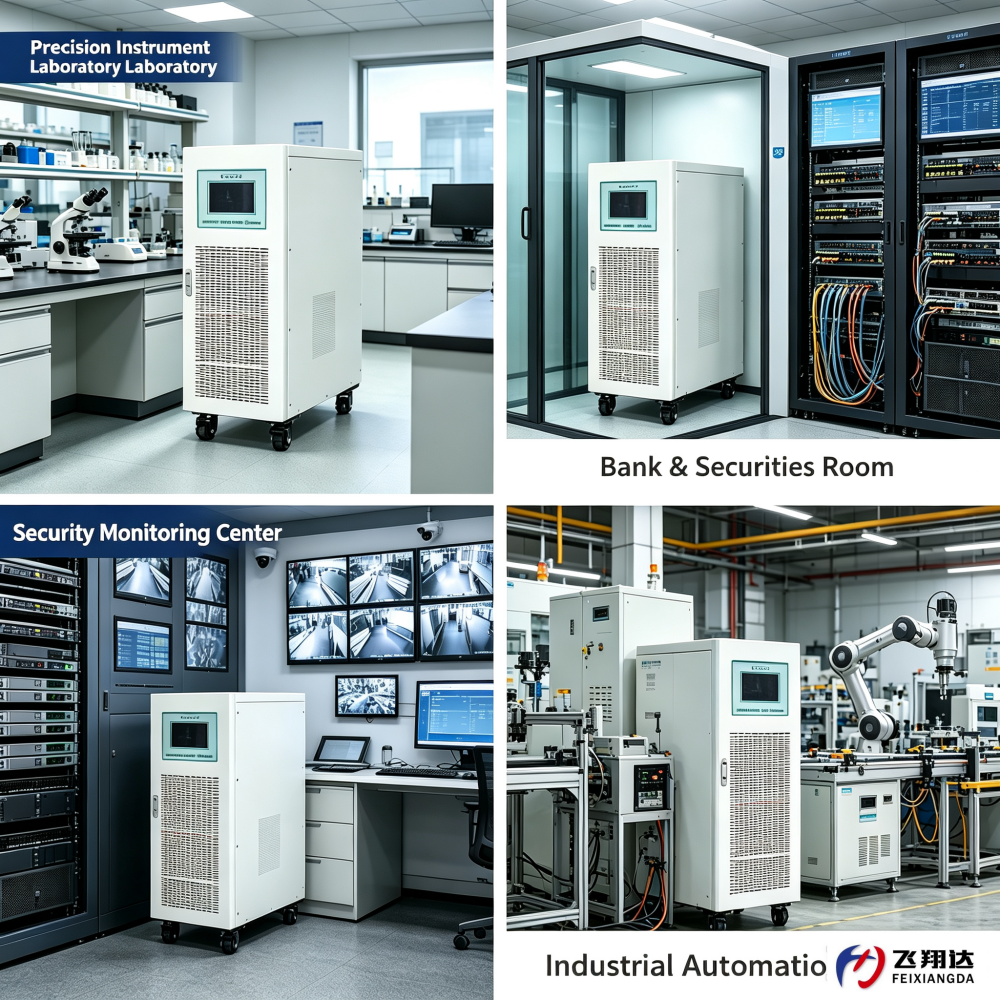

This model comes with a built-in isolation transformer, ensuring complete electrical separation between the mains supply and your connected equipment. This feature is especially important for medical facilities, precision manufacturing and environments with high electrical noise.
In normal operation, the UPS converts AC input to DC, then reconverts DC to stable AC output. This double-conversion process completely isolates the load from mains disturbances including surges, sags, harmonics and frequency variations.
When mains power fails, the battery bank instantly supplies DC power to the inverter — there is zero transfer time, ensuring uninterrupted operation for critical loads.
| Item | Specification |
|---|---|
| Model | T3000-10KVA |
| Rated Capacity | 10kVA |
| Input | Three-phase + N + G |
| Input Voltage | 380VAC ±25% |
| Input Frequency | 50Hz ±10% / 60Hz ±10% |
| Output | Three-phase + N + G |
| Output Voltage | 380VAC ±15% |
| Output Frequency | 50Hz / 60Hz ±10% |
| Battery Units | 32 |
| Nominal Battery Voltage | 360V |
| Output Waveform | Sine Wave |
| Linear Load THD | <2% |
| Non-linear Load THD | <4% |
| Inverter Efficiency at 100% Load | 95% |
| ECO Mode Efficiency | ≥98% |
| Communication | RS232 / RS485 |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 0–90%, non-condensing |
| Dimensions (D×W×H) | 350 × 700 × 900mm |
| Weight | 177kg |
| Cooling | Temperature-controlled forced ventilation |
